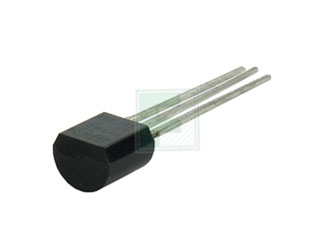

The TL431ACZ is a programmable shunt voltage reference with guaranteed temperature stability over the entire operating temperature range.
Features:
Adjustable output voltage 2.5 V to 36 V
Sink current capability 1 mA to 100 mA
Typical output impedance 0.22 Ω
1 % and 2 % voltage precision
Automotive temperature range -40° C to +125° C
Applications:
Power supply
Industrial
Automotive
Категория:
Источники опорного напряжения
Артикул:
6882435
Наличие:
258
-
Package Style:
TO-92
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
STMicroelectronics
-
Тикер производителя:
STM
-
Модель модификации:
TL431ACZ
-
Модель:
box
-
Артикул (SKU):
6882435
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--regulators-reference--voltage-references/tl431acz-stmicroelectronics-6882435
-
Tolerance (%):
±1%
-
Rated Current:
1mA to 100mA
-
Operating Temp Range:
0°C to 70°C
-
Rated Voltage:
2.495V to 36V
-
Storage Temperature Range:
-65°C to +150°C
-
Moisture Sensitivity Level:
1
-
Type:
Shunt Adjustable
-
Скачать Datasheet en.CD00000986.pdf:
http://www.st.com/content/ccc/resource/technical/document/datasheet/2d/27/af/41/03/e2/44/8e/CD00000986.pdf/files/CD00000986.pdf/jcr:content/translations/en.CD00000986.pdf
