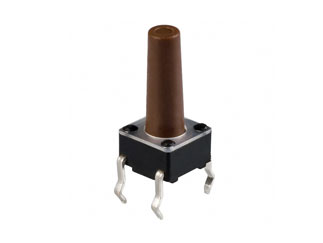

The TL1105 series 6mm x 6mm tactile switch comes with a right angle option, many actuator lengths and multiple operating forces.
Features:
Reliable dome contact technology
Strong tactile/audible feedback
Multiple operating force options
Applications:
Telecommunications
Consumer Electronics
Audio/visual
Medical
Testing/instrumentation
Computer/servers/peripherals
Категория:
Тактовые кнопки
Артикул:
2468155
Наличие:
780
-
Operating Temperature:
-20°C to +70°C
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
7500
-
Производитель:
E-Switch
-
Тикер производителя:
ESW
-
Модель модификации:
TL1105DF100Q
-
Модель:
bulk
-
Артикул (SKU):
2468155
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/electromechanical--switches--tactile/tl1105df100q-e-switch-2468155
-
Insulation Resistance:
100MΩ
-
Dimension:
L 6mm x W 6mm
-
Contact Material:
Silver
-
Termination Style:
PCB
-
Voltage Rating:
12V
-
Actuation Force:
1N
-
Actuator Style:
Round Button
-
Current Rating:
50mA
-
Dielectric Withstanding Voltage:
250V
-
Switch Operation:
Off-Mom
-
Circuitry:
SPST N.O.
-
Contact Plating:
Silver
-
Operating Force:
100gf
-
Скачать Datasheet TL1105DF100Q.pdf:
https://configured-product-images.s3.amazonaws.com/2D/specs/TL1105DF100Q.pdf
