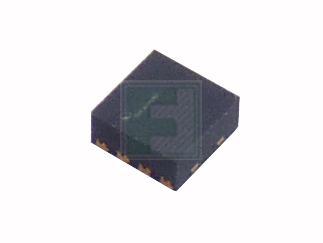

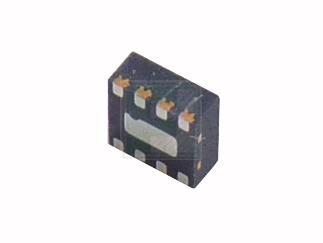

SY58601UMG-TR Microchip: Приемник дифференциальный, до 5Гбит/с, 2.5-3.3В, MLF-8

The SY58601UMG TR is a ultra precision differential receiver with internal termination, available in surface mount MLF-8 package. Features: Guaranteed AC performance over temperature and voltage: DC-to >5 Gbps data rate throughput DC-to >5 GHz clock fMAX <260ps in-to-out tpd tr / tf <90ps DC-to >5 Gbps data rate throughput DC-to >5 GHz clock fMAX <260ps in-to-out tpd tr / tf <90ps Ultra low-jitter design: <1psRMS random jitter <10psPP deterministic jitter <10psPP total jitter (clock) <1psRMS random jitter <10psPP deterministic jitter <10psPP total jitter (clock) Minimum input swing 200 mV (|IN–/IN|) Unique, patent-pending input termination and VT pin accepts DC-coupled and AC-coupled inputs (CML, PECL, LVDS) Typical 800mV (100k) LVPECL output swing Power supply 2.5 V ±5% or 3.3 V ±10% -40°C to 85°C industrial temperature range Available in an ultra-small (2 mm x 2 mm) 8-pin MLF package Applications: Backplane buffering OC-12 to OC-192 SONET/SDN clock/data distribution All Gigabit Ethernet distribution Fibre Channel distribution
