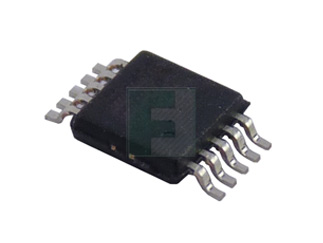

The SY55857LKG is a part of SY55857L series fully differential, high-speed dual translator optimized to accept any logic standard from single-ended TTL/CMOS to differential LVDS, HSTL, or CML and translate it to LVPECL. Operating temperature ranges from -40 °C to 85 °C and its available in 10 LEAD MSOP (K10-1) packages.
Features:
Input accepts virtually all logic standards
Single-ended: SSTL, TTL, CMOS
Differential: LVDS, HSTL, CML
Guaranteed AC parameters over temperature:
fMAX > 2.5 Gbps (2.5 GHz toggle)
tr / tf < 200 ps
Within-device skew < 50 ps
Propagation delay < 400 ps
Low power: 46 mW/channe l (typ)
3.0 V to 3.6 V power supply
100K LVPECL outputs
Flow-through pinout and fully differential design
Two channels in a 10-pin (3mm x 3mm) MSOP package
Applications:
High-speed logic
Data communications systems
Wireless communications systems
Telecom systems
View the SY55 Series of Differential Translator
View the SY55 Series of Differential Translator
Категория:
Преобразователи логических уровней
Артикул:
6050389
Наличие:
226
-
Supply Voltage:
3V to 3.6V
-
Package Style:
MSOP-10
-
Mounting Method:
Surface Mount
-
ECCN:
5A991.b.1
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
200
-
Производитель:
Microchip
-
Тикер производителя:
MCP
-
Модель модификации:
SY55857LKG
-
Модель:
tube
-
Артикул (SKU):
6050389
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--translators/sy55857lkg-microchip-6050389
-
Output Type:
LVPECL
-
No of Channels:
2
-
Data Rate:
2.5Gbps
-
Input Type:
TTL/CMOS
-
Operating Frequency-Max:
2.5GHz
-
Скачать Datasheet sy55857l.pdf:
http://ww1.microchip.com/downloads/en/DeviceDoc/sy55857l.pdf
