The STTH2002G-TR is a single rectifier which is suited for switch mode power supply and high frequency DC to DC converters.
Features:
Ultrafast switching
Low reverse current
Low thermal resistance
Reduces switching and conduction losses
High Tj
Insulating voltage: 2500 V rms
Capacitance: 7 pF
Категория:
Сверхбыстрые выпрямительные диоды
Артикул:
6628697
Наличие:
307
-

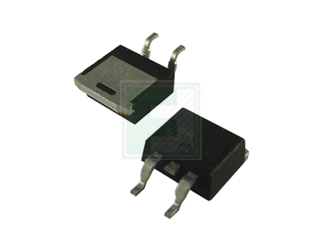

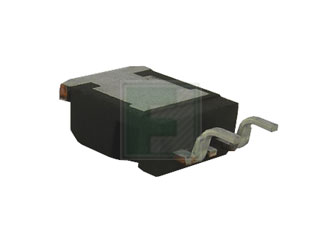

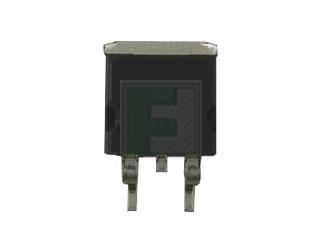

Package Style:
TO-263-3 (D2PAK)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1000
-
Производитель:
STMicroelectronics
-
Тикер производителя:
STM
-
Модель модификации:
STTH2002G-TR
-
Модель:
reel
-
Артикул (SKU):
6628697
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--diodes--ultrafast-rectifiers/stth2002g-tr-stmicroelectronics-6628697
-
Storage Temperature Range:
-65°C to +175°C
-
Forward Voltage:
1V
-
Configuration:
Single
-
Reverse Current-Max:
10µA
-
Reverse Voltage-Max [Vrrm]:
200V
-
Reverse Recovery Time-Max:
40ns
-
Peak Current-Max:
175A
-
Average Rectified Current-Max:
20A
-
Thermal Resistance:
2.4°C/W
-
Forward RMS Current [If rms]:
35A
-
Скачать Datasheet en.CD00110358.pdf:
http://www.st.com/content/ccc/resource/technical/document/datasheet/ab/15/24/37/78/84/45/3a/CD00110358.pdf/files/CD00110358.pdf/jcr:content/translations/en.CD00110358.pdf
