The STTH1R02A uses ST's new 200 V planar Pt doping technology, and it is specially suited for switching mode base drive and transistor circuits.
Features:
Very low conduction losses
Negligible switching losses
Low forward and reverse recovery times
High junction temperature
?
Категория:
Сверхбыстрые выпрямительные диоды
Артикул:
7029823
Наличие:
485
-
Package Style:

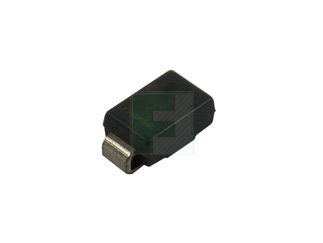

SMA (DO-214AC, SOD-106)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
15000
-
Производитель:
STMicroelectronics
-
Тикер производителя:
STM
-
Модель модификации:
STTH1R02A
-
Модель:
reel
-
Артикул (SKU):
7029823
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--diodes--ultrafast-rectifiers/stth1r02a-stmicroelectronics-7029823
-
Operating Temp Range:
-65°C to +175°C
-
Storage Temperature Range:
-65°C to +175°C
-
Forward Voltage:
0.89V
-
Configuration:
Single
-
Reverse Current-Max:
3µA
-
Reverse Voltage-Max [Vrrm]:
200V
-
Reverse Recovery Time-Max:
30ns
-
Diode Capacitance-Max:
7pF
-
Peak Current-Max:
60A
-
Average Rectified Current-Max:
1.5A
-
Thermal Resistance:
30°C/W
-
Forward RMS Current [If rms]:
50A
-
Скачать Datasheet en.CD00110329.pdf:
http://www.st.com/content/ccc/resource/technical/document/datasheet/3b/af/f0/ff/c2/de/47/8b/CD00110329.pdf/files/CD00110329.pdf/jcr:content/translations/en.CD00110329.pdf
