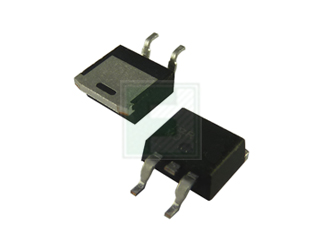

The STPS20H100CG-TR is a Dual center tap Schottky rectifier designed for high frequency miniature switched mode power supplies such as adaptators and on board DC/DC converters.
Features:
Negligible switching losses
High junction temperature capability
Good trade off between leakage current and foward voltage drop
Low leakage current
Avalanche rated
Insulated package: TO-220FPAB Insulating voltage = 2000 V DC Capacitance = 45 pF
Insulating voltage = 2000 V DC
Capacitance = 45 pF
Avalanche capability specified
Категория:
Диоды Шоттки
Артикул:
6697510
Наличие:
403
-
Package Style:
TO-263-3 (D2PAK)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
2000
-
Производитель:
STMicroelectronics
-
Тикер производителя:
STM
-
Модель модификации:
STPS20H100CG-TR
-
Модель:
reel
-
Артикул (SKU):
6697510
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--diodes--scottky-rectifiers/stps20h100cg-tr-stmicroelectronics-6697510
-
Operating Temp Range:
-55°C to +175°C
-
Storage Temperature Range:
-65°C to +175°C
-
Forward Voltage:
0.64V
-
Configuration:
Dual
-
Reverse Current-Max:
4.5µA
-
Reverse Voltage-Max [Vrrm]:
100V
-
Peak Current-Max:
250A
-
Average Rectified Current-Max:
10A
-
Thermal Resistance:
1.6°C/W
-
Forward RMS Current [If rms]:
30A
-
Скачать Datasheet en.CD00001292.pdf:
http://www.st.com/content/ccc/resource/technical/document/datasheet/7e/4a/1d/90/62/65/40/f2/CD00001292.pdf/files/CD00001292.pdf/jcr:content/translations/en.CD00001292.pdf
