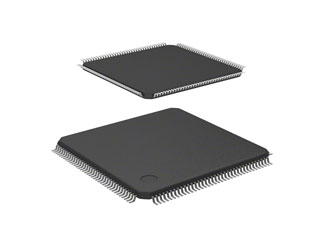

STM32F207ZGT6; STMicroelectronics; 1MB Flash, 132kB RAM, LQFP-144

The STM32F207ZGT6 is a high-performance advanced ARM Cortex™-M3 32-bit RISC microcontroller. It has a core operating frequency of 120 MHz  with high-speed embedded memories and an extensive range of enhanced peripherals,I/Os connected to two APB buses. Features: Core: ARM 32-bit Cortex™-M3 CPU (120 MHz max) Memories Up to 1 Mbyte of Flash memory 512 bytes of OTP memory Up to 128 + 4 Kbytes of SRAM Flexible static memory controller that supports Compact Flash LCD parallel interface, 8080/6800 modes CRC calculation unit Up to 1 Mbyte of Flash memory 512 bytes of OTP memory Up to 128 + 4 Kbytes of SRAM Flexible static memory controller that supports Compact Flash LCD parallel interface, 8080/6800 modes CRC calculation unit Clock, reset and supply management From 1.8 to 3.6 V application supply+I/Os POR, PDR, PVD and BOR 4 to 26 MHz crystal oscillator Internal 16 MHz factory-trimmed RC 32 kHz oscillator for RTC with calibration Internal 32 kHz RC with calibration From 1.8 to 3.6 V application supply+I/Os POR, PDR, PVD and BOR 4 to 26 MHz crystal oscillator Internal 16 MHz factory-trimmed RC 32 kHz oscillator for RTC with calibration Internal 32 kHz RC with calibration Low power Sleep, Stop and Standby modes VBAT supply for RTC, 20 × 32 bit Sleep, Stop and Standby modes VBAT supply for RTC, 20 × 32 bit General-purpose DMA: 16-stream controller with centralized FIFOs and burst support 96-bit unique ID Up to 17 timers Up to 140 I/O ports with interrupt capability Up to 15 communication interfaces 8- to 14-bit parallel camera interface Analog true random number generator Applications: Industrial Automotive
