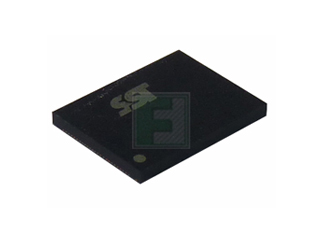

SST39VF3201C-70-4I-B3KE Flash Memory 32Mb 70ns 2.7V-3.6V TFBGA-48 Microchip

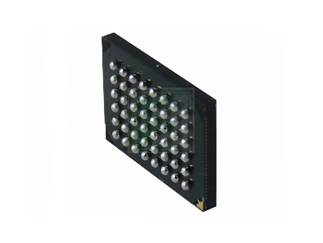

The SST39VF3201C-70-4I-B3KE is a 32 Mbit Multi-Purpose Flash Plus(MPF+) Memory manufactured with SST proprietary, high performance CMOS SuperFlash technology. Available in surface mount TFBGA-48 package. Features: Organized as 2M x16 Single Voltage Read and Write Operations : 2.7-3.6V Superior Reliability Endurance: 100,000 Cycles (typical) Greater than 100 years Data Retention Endurance: 100,000 Cycles (typical) Greater than 100 years Data Retention Low Power Consumption (typical values at 5 MHz) Active Current: 6 mA (typical) Standby Current: 4 μA (typical) Auto Low Power Mode: 4 μA (typical) Active Current: 6 mA (typical) Standby Current: 4 μA (typical) Auto Low Power Mode: 4 μA (typical) Hardware Block-Protection/WP# Input Pin Bottom Block-Protection (bottom two 4-KWord blocks) Bottom Block-Protection (bottom two 4-KWord blocks) Sector-Erase Capability Uniform 2 KWord sectors Uniform 2 KWord sectors Block-Erase Capability Flexible block architecture Eight 4-KWord blocks, 63 32-KWord blocks Flexible block architecture Eight 4-KWord blocks, 63 32-KWord blocks Chip-Erase Capability Erase-Suspend/Erase-Resume Capabilities Hardware Reset Pin (RST#) Security-ID Feature SST: 128 bits; User: 128 words SST: 128 bits; User: 128 words Fast Read Access Time: 70 ns Latched Address and Data Fast Erase and Word-Program: Sector-Erase Time: 18 ms (typical) Block-Erase Time: 18 ms (typical) Chip-Erase Time: 35 ms (typical) Word-Program Time: 7 μs (typical) Sector-Erase Time: 18 ms (typical) Block-Erase Time: 18 ms (typical) Chip-Erase Time: 35 ms (typical) Word-Program Time: 7 μs (typical) Automatic Write Timing Internal VPP Generation Internal VPP Generation End-of-Write Detection Toggle Bits Data# Polling RY/BY# Pin Toggle Bits Data# Polling RY/BY# Pin CMOS I/O Compatibility JEDEC Standard Flash EEPROM Pinouts Assignments Flash EEPROM Pinouts Assignments All non-Pb (lead-free) devices are RoHS compliant Applications: Bluetooth GPS Digital TVs Digital Media Players MP3 Players WiFi/ WiMAX Printers Mobile Phones Digital Cameras Industrial Automotive Infotainment
