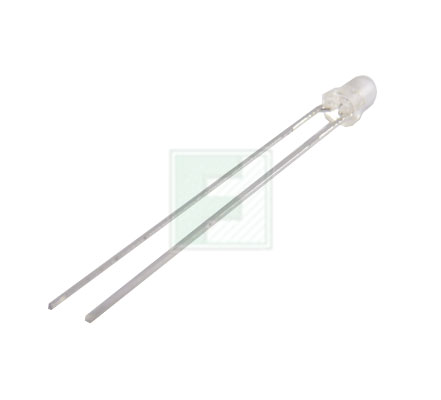

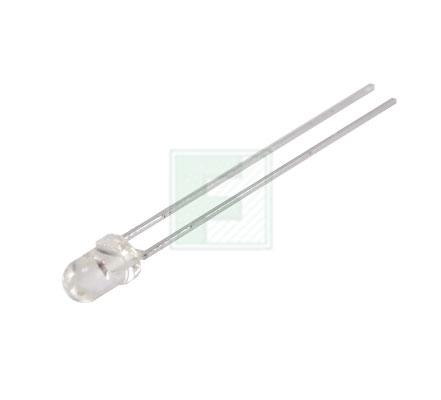

The SSL-LX3044YC is a 2.1 V 3 mm Yellow water clear 90 mcd Round Through Hole QuasarBrite LEDs.
Features:
State-of-the-Art LED Technology
Choice of LED Colors and Lens FInishes
Lead Frame / Lens Casting Reliability
Easy-to-Solder Leads, Tin Finish
Available Bulk or on Tape and Reel
Custom Solutions available
Parameters:
Peak Forward Current : 150 mA
Steady Current : 30 mA
Power Dissipation : 105 mW
Derate from 25°c : -1.6 mW/°C
Operating temperature : -40°C to + 85°C
Peak wave length : 585 nm
Forward voltage : 2.1 V to 2.5 V
Reverse Voltage : 5.0 V
Emitted color : Yellow
Epoxy Lens Finish : water Clear
Applications:
Industrial Controls
Medical Eqiupment
Communications Equipment
Test and Measurement Equipment
Security Electronics
Life Safety Equipment
Large Panel Indicators
Категория:
Светодиоды
Артикул:
2547487
Наличие:
459
-
Package Style:
T-1
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
3000
-
Производитель:
Lumex
-
Тикер производителя:
LUM
-
Модель модификации:
SSL-LX3044YC
-
Модель:
bag
-
Артикул (SKU):
2547487
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--optoelectronics--leds/ssl-lx3044yc-lumex-2547487
-
Operating Temp Range:
-40°C to +85°C
-
Storage Temperature Range:
-40°C to +85°C
-
Color:
Yellow
-
No of LEDs:
1
-
Lens Type:
Clear
-
Forward Voltage:
2.1V
-
Forward (Drive) Current:
20mA
-
Intensity:
90mcd
-
Viewing Angle:
30°
-
Wavelength:
585nm
-
Rated Power:
105mW
-
Dimension:
H 4.6mm x D 3.2mm
-
Скачать Datasheet SSL-LX3044YC.pdf:
https://www.lumex.com/spec/SSL-LX3044YC.pdf
