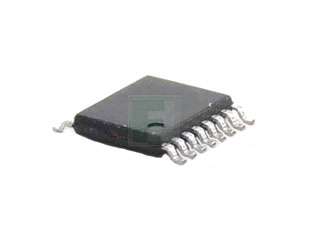

The SP3222EU and the SP3232EU are 2 driver, 2 receiver RS-232 transceiver solutions intended for portable or hand-held applications such as notebook or palmtop computers
Features
Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply
Interoperable with EIA/TIA - 232 and adheres to EIA/TIA - 562 down to a +2.7V power source
Enhanced ESD Specifications: ±15kV Human Body Model ±15kV IEC1000-4-2 Air Discharge ±8kV IEC1000-4-2 Contact Discharge
±15kV Human Body Model
±15kV IEC1000-4-2 Air Discharge
±8kV IEC1000-4-2 Contact Discharge
1000 kbps Minimum Transmission Rate
Ideal for Handheld, Battery Operated Applications
Категория:
RS-232
Артикул:
7187924
Наличие:
283
-
Supply Voltage:
3V to 5.5V
-
Package Style:
TSSOP-16
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
2500
-
Производитель:
MaxLinear
-
Тикер производителя:
MXL
-
Модель модификации:
SP3232EUEY-L/TR
-
Модель:
reel
-
Артикул (SKU):
7187924
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--signal-interface--rs-232/sp3232euey-l-tr-maxlinear-7187924
-
Operating Temp Range:
-40°C to +85°C
-
Moisture Sensitivity Level:
1
-
Power Dissipation:
0.85W
-
Data Rate:
1Mbps
-
No of Terminals:
16
-
Supply Current:
0.3mA
-
Скачать Datasheet document:
https://www.maxlinear.com/document?id=634
-
ESD Voltage-Max:
±15kV
-
Duplex:
Full Duplex
-
No. of Drivers:
2
-
No. of Receivers:
2
-
Function:
Transceiver
