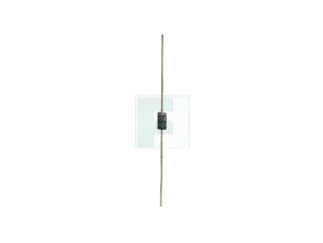

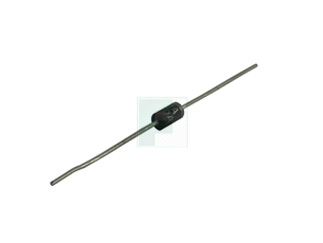

The SA13CA-E3/54 is a part of SA series TVS diodes. It has an operating temperature ranging from -55° C to +175° C and it comes in DO-204AC packaging.
Features:
Glass passivated chip junction
Available in uni-directional and bi-directional
500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
Excellent clamping capability
Very fast response time
Low incremental surge resistance
Solder dip 260 °C, 40 s
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Applications:
MOSFET
Signal lines of sensor units for consumer
Computer
Industrial
Telecommunication
Категория:
TVS-диоды
Артикул:
7549942
Наличие:
552
-
Package Style:
DO-204AC (DO-15)
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
4000
-
Производитель:
Vishay
-
Тикер производителя:
GS
-
Модель модификации:
SA13CA-E3/54
-
Модель:
reel
-
Артикул (SKU):
7549942
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/electromechanical--circuit-protection--tvs-diodes/sa13ca-e3-54-vishay-7549942
-
Power Dissipation:
500W
-
Clamping Voltage-Max:
21.5V
-
Breakdown Voltage-Min:
14.4V
-
Breakdown Voltage-Max:
15.9V
-
Directional:
Bi-Directional
-
Скачать Datasheet doc:
http://www.vishay.com/doc?88378
