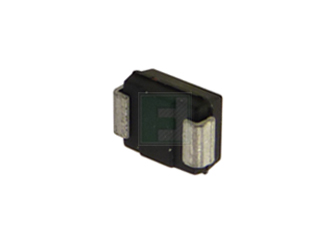

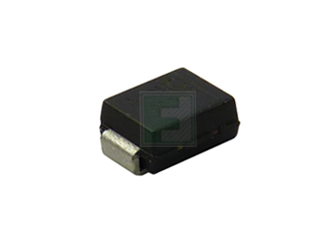

The S1DB-13-F is a part of S1DB Series 200 V 1 A Surface Mount Glass Passivated Rectifier. It has an operating temperature range -65 °C to +150 °C and it is available in DO-214AA Package.
Features:
Glass Passivated Die Construction for High Reliability
Surge Overload Rating to 30 A Peak
Ideally Suited for Automated Assembly
Lead Free Finish/RoHS Compliant
Green Molding Compound (No Halogen and Antimony)
Qualified to AEC-Q101 Standards for High Reliability
Категория:
Выпрямительные диоды
Артикул:
4739967
Наличие:
563
-
Package Style:
SMB (DO-214AA)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
3000
-
Производитель:
Diodes Incorporated
-
Тикер производителя:
DIO
-
Модель модификации:
S1DB-13-F
-
Модель:
reel
-
Артикул (SKU):
4739967
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--diodes--standard-rectifiers/s1db-13-f-diodes-incorporated-4739967
-
Forward Voltage:
1.1V
-
Reverse Current-Max:
5µA
-
Reverse Voltage-Max [Vrrm]:
200V
-
Peak Current-Max:
30A
-
Average Rectified Current-Max:
1A
-
Скачать Datasheet ds16003.pdf:
https://www.diodes.com/assets/Datasheets/ds16003.pdf
