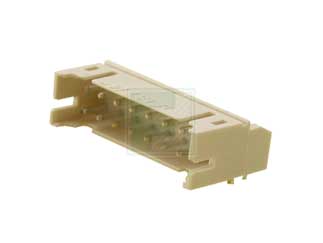

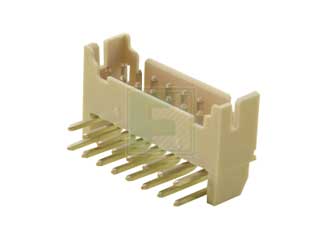

The S16B-PHDSS(LF)(SN) is a part of PHD Series Glass-filled nylon 2.0 mm 16 Position dual Row Side Entry Type Shrouded header wire to Board Connector.
Features:
Compact
Reliable contacts
Fully shrouded header
Product Specifications:
Pitch: 2.0 mm
Current rating: 3.0 A
Voltage rating: 250 V
Temperature range: -25°C to +85°C
Insulation resistance: 1000 M?
View the Complete PHD Series of Connectors
View the Complete PHD Series of Connectors
Категория:
Гребенки
Артикул:
4422259
Наличие:
464
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
JST
-
Тикер производителя:
JST
-
Модель модификации:
S16B-PHDSS(LF)(SN)
-
Модель:
box
-
Артикул (SKU):
4422259
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/s16b-phdss-lf-sn-jst-4422259
-
Operating Temp Range:
-25°C to +85°C
-
Insulation Resistance:
1000MΩ
-
Type:
Wire to Board
-
Color:
Natural
-
No of Positions:
16
-
Voltage Rating:
250V
-
Current Rating:
3A
-
Style/Orientation:
Right Angle Header/Plug
-
Termination:
Crimp
-
Material:
Polyamide
-
Contact Plating:
Tin
-
Pitch:
2 mm
-
Gender:
Male
-
No of Rows:
2
-
Mating Type:
Detent Lock
-
Скачать Datasheet ePHD.pdf:
http://www.jst-mfg.com/product/pdf/eng/ePHD.pdf
