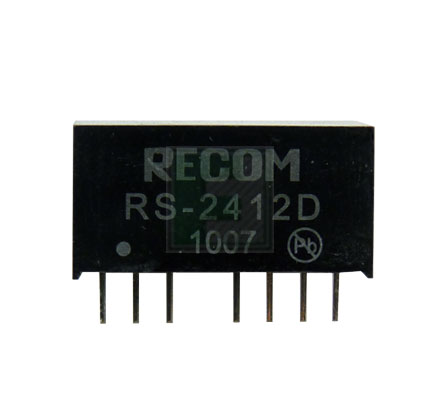

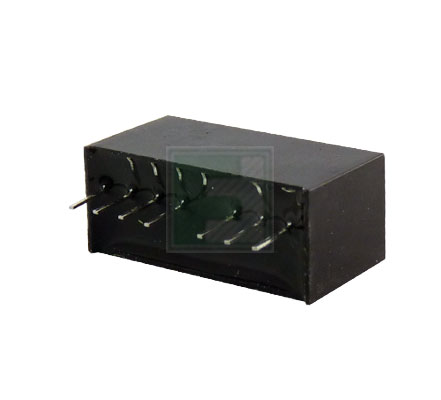

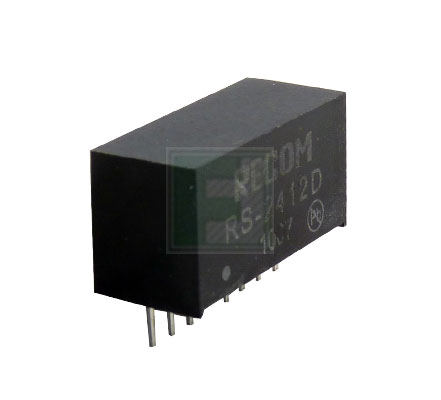

The RS-2412D is a part of RS-24 series DC/DC Converter. It has an operating temperature ranging from -40°C to +85°C and it comes in SIP-8 Packaging.
Features:
2:1 and 4:1 Wide Input Voltage Ranges
1kVDC, 2kVD & 3kVDC Isolation
UL94V-0 Package Material
Continuous Short Circuit Protection
Low Noise
No External Capacitor needed
Efficiency to 83%
Категория:
DC/DC преобразователи
Артикул:
1115847
Наличие:
867
-
Package Style:
SIP-8
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
RECOM
-
Тикер производителя:
RCM
-
Модель модификации:
RS-2412D
-
Модель:
tube
-
Артикул (SKU):
1115847
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/electromechanical--power-supplies--dc-dc/rs-2412d-recom-1115847
-
Operating Temp Range:
-40°C to +85°C
-
Type:
Encapsulated
-
Dimension:
L 21.8mm x W 9.2mm x H 11.1mm
-
Power Dissipation:
2W
-
Output Power:
2W
-
Load Capacitance:
680µF
-
No of Outputs:
Dual
-
Quiescent Current:
32mA
-
Output Voltage:
-12V/12V
-
Switching Frequency-Max:
300kHz
-
Isolation:
Isolated
-
Input Voltage:
18V to 36V
-
Efficiency:
83%
-
Load Regulation (%):
0.5%
-
Output Current:
±83mA
-
Ripple & Noise:
50mV
-
Скачать Datasheet RS-S_D_Z.pdf:
http://www.recom-power.com/pdf/Econoline/RS-S_D_Z.pdf
