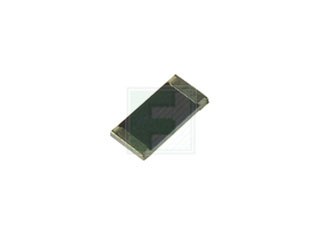

The RC0603FR-0749R9L is a 0603 (.06” X .03”) case size, Surface Mount, Thick Film Chip Resistor, with a tolerance of 1%. The ohmic value of this device is 49.9 ohms. The RC0603FR-0749R9L is Lead-Free/RoHS.
Operating Temperature Range –55 °C to +155 °C
Maximum Working Voltage 50 V
Maximum Overload Voltage 100 V
Dielectric Withstanding Voltage 100 V
Resistance Range 1% (E24/E96) 1 Ohm to 10 M Ohms
Resistance Range 5% (E24) 1 Ohm to 22 M Ohms
Категория:
Резисторы постоянные
Артикул:
4617130
Наличие:
934
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
5000
-
Производитель:
YAGEO
-
Тикер производителя:
YAG
-
Модель модификации:
RC0603FR-0749R9L
-
Модель:
reel
-
Артикул (SKU):
4617130
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/passives--resistors--fixed-resistors/rc0603fr-0749r9l-yageo-4617130
-
Tolerance (%):
±1%
-
Case Size:
0603 (1608 Metric)
-
Operating Temp Range:
-55°C to +155°C
-
Rated Power:
0.1W
-
Technology:
Metal Oxide Film
-
Resistance:
49.9Ω
-
Temp Coefficient:
±100ppm/°C
-
Working Voltage-Nom:
75V
-
Height - Max:
0.55mm
-
Dielectric Withstanding Voltage:
150V
-
No. of Terminations:
2
-
Overload Voltage - Max:
150V
-
Скачать Datasheet PYu-RC_Group_51_RoHS_L_12.pdf:
https://www.yageo.com/upload/media/product/productsearch/datasheet/rchip/PYu-RC_Group_51_RoHS_L_12.pdf
