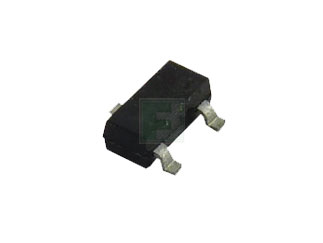

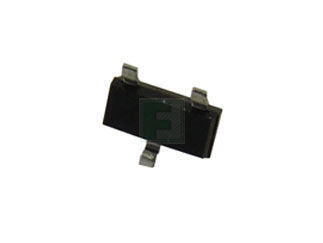

The PMBD7000 consists of two high-speed switching diodes connected in series, fabricated in planar technology, and encapsulated in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
Features:
High switching speed: trr ≤ 4 ns
Reverse voltage: VR ≤ 100 V
Repetitive peak forward current: IFRM ≤ 450 mA
Repetitive peak reverse voltage: VRRM ≤ 100 V
Small SMD plastic package
AEC-Q101 qualified
Applications:
High-speed switching
General-purpose switching
Категория:
Переключательные диоды
Артикул:
3602182
Наличие:
331
-
Package Style:
SOT-23 (SC-59,TO-236)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
57000
-
Производитель:
Nexperia
-
Тикер производителя:
NPR
-
Модель модификации:
PMBD7000,215
-
Модель:
reel
-
Артикул (SKU):
3602182
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--diodes--switching/pmbd7000-215-nexperia-3602182
-
Operating Temp Range:
-65°C to +150°C
-
Type:
Standard
-
Forward Voltage:
1.25V
-
Configuration:
Dual
-
Reverse Current-Max:
100µA
-
Reverse Voltage-Max [Vrrm]:
100V
-
Reverse Recovery Time-Max:
4ns
-
Power Dissipation:
250mW
-
Diode Capacitance-Max:
1.5pF
-
Average Forward Current-Max:
125mA
-
Peak Current-Max:
4A
-
Скачать Datasheet PMBD7000.pdf:
https://assets.nexperia.com/documents/data-sheet/PMBD7000.pdf
