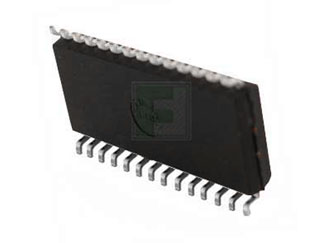

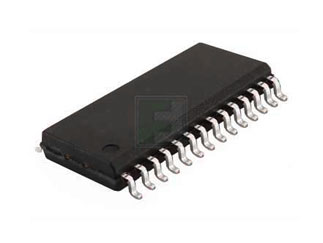

The PIC16F1938T-I/SO is a 1 kB RAM 8-bit CMOS microcontroller with LCD driver and nano Watt XLP technology. It is available in 28 pin SOIC package.
Features:
Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
Flash Program Memory with self read/write capability
60 LCD segment drive support
Internal 32 MHz oscillator
Integrated Capacitive mTouch Sensing Module
Integrated Temperature Indicator
MI2C, SPI, EUSART w/auto baud
3 ECCP & 2 CCP (Enhanced/Capture Compare PWM)
Comparators with selectable Voltage Reference
11 Channel 10b ADC with Voltage Reference
25 mA Source/Sink current I/O
Four 8-bit Timers (TMR0/TMR2/TMR4/TMR6)
One 16-bit Timer (TMR1)
Extended Watchdog Timer (EWDT)
Enhanced Power-On/Off-Reset
Brown-Out Reset (BOR)
In Circuit Serial Programming (ICSP)
Wide Operating Voltage (1.8 V – 5.5 V)
Low Power PIC16LF1938 variant (1.8 V – 3.6 V)
Категория:
8-разрядные микроконтроллеры
Артикул:
5000743
Наличие:
413
-
Family Name:
PIC16F
-
Core Processor:
PIC
-
Program Memory Type:
Flash
-
Flash Size (Bytes):
28kB
-
RAM Size:
1kB
-
Speed:
32MHz
-
No of I/O Lines:
25
-
InterfaceType / Connectivity:
I2C/SPI/USART
-
Peripherals:
Analog Comparators/I2C/LCD Segments/On-Chip-ADC/PWM/SPI/USART/Watchdog
-
Number Of Timers:
5
-
Supply Voltage:
1.8V to 5.5V
-
Operating Temperature:
-40°C to +85°C
-
On-Chip ADC:
11-chx10-bit
-
Package Style:
SOIC-28
-
Mounting Method:
Surface Mount
-
ECCN:
3A991.a.2
-
Информация PCN:
View PCN Information
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1600
-
Производитель:
Microchip
-
Тикер производителя:
MCP
-
Модель модификации:
PIC16F1938T-I/SO
-
Модель:
reel
-
Артикул (SKU):
5000743
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--microcontrollers--8-bit/pic16f1938t-i-so-microchip-5000743
-
Watchdog Timers:
1
-
Скачать Datasheet 40001574C.pdf:
http://ww1.microchip.com/downloads/en/DeviceDoc/40001574C.pdf
