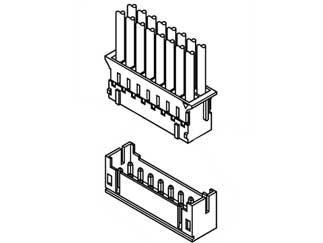

The PHDR-28VS is a part of PHD series 28 position 2 mm pitch dual row wire to board socket connector. It has an operating temperature ranging from -25°C to +85°C.
Features:
Current rating: 3 A AC, DC
Voltage rate: 250 V AC, DC
Contact resistance: Initial value/10 mO max
Insulation resistance: 1000 MO min
Withstanding voltage: 800 V AC/minute
Applicable wire: AWG#28 to #22
Applicable PC board thickness: 1.6 mm
Compact
Reliable contacts
Fully shrouded header
View the available PHD series of wire to board connector
View the available PHD series of wire to board connector
Категория:
Корпуса гнездовых разъемов
Артикул:
9350588
Наличие:
594
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1000
-
Производитель:
JST
-
Тикер производителя:
JST
-
Модель модификации:
PHDR-28VS
-
Модель:
bag
-
Артикул (SKU):
9350588
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/phdr-28vs-jst-9350588
-
Type:
Wire to Board
-
No of Positions:
28
-
Style/Orientation:
Free Hanging Socket/Receptacle
-
Termination:
Crimp
-
Pitch:
2 mm
-
Скачать Datasheet ePHD.pdf:
http://www.jst-mfg.com/product/pdf/eng/ePHD.pdf
