The PCA9536 is an 8-pin CMOS device that provides 4 bits of General Purpose parallel Input/Output (GPIO) expansion for I2C-bus/SMBus applications and was developed to enhance the NXP Semiconductors family of I2C-bus I/O expanders. I/O expanders provide a simple solution when additional I/O is needed for ACPI power switches, sensors, push buttons, LEDs, fans, etc.
Features:
4-bit I2C-bus GPIO
Operating power supply voltage range of 2.3 V to 5.5 V
5 V tolerant I/Os
Polarity Inversion register
Low standby current
Noise filter on SCL/SDA inputs
No glitch on power-up
Internal power-on reset
4 I/O pins which default to 4 inputs with 100 kΩ internal pull-up resistor
0 Hz to 400 kHz clock frequency
Категория:
I2C
Артикул:
2804813
Наличие:
189
-
No of I/O Lines:
4
-
Package Style:

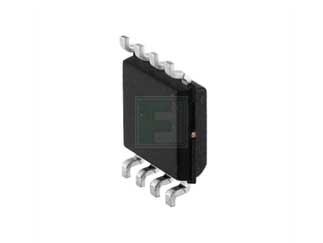

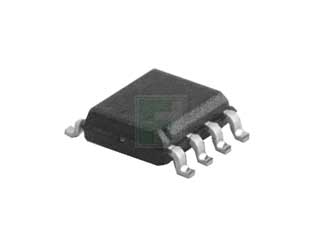

SOIC-8
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
2500
-
Производитель:
NXP
-
Тикер производителя:
NXP
-
Модель модификации:
PCA9536D,118
-
Модель:
reel
-
Артикул (SKU):
2804813
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--comm-products--i2c/pca9536d-118-nxp-2804813
-
Clock Frequency-Max:
400kHz
-
Supply Voltage-Nom:
2.3V to 5.5V
-
Supply Current:
290µA
-
Interface Type:
I2C/SMBus
-
Скачать Datasheet PCA9536.pdf:
https://www.nxp.com/docs/en/data-sheet/PCA9536.pdf
