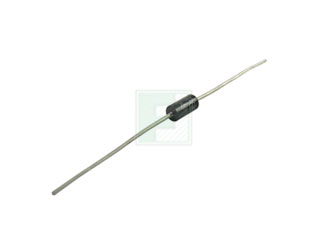

The P6KE62CA-E3/54 is a part of P6KE series TVS Diodes. It has an operating temperature ranging from - 55 °C to +175 °C and it is available in DO-204AC packaging.
Features:
Glass passivated chip junction
Available in uni-directional and bi-directional
600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
Excellent clamping capability
Very fast response time
Low incremental surge resistance
Solder dip 260 °C, 40 s
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Applications:
MOSFET
Signal lines of sensor units for consumer
Computer
Industrial
Automotive
Telecommunication
Категория:
TVS-диоды
Артикул:
8591026
Наличие:
921
-
Package Style:
DO-204AC (DO-15)
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
4000
-
Производитель:
Vishay
-
Тикер производителя:
GS
-
Модель модификации:
P6KE62CA-E3/54
-
Модель:
reel
-
Артикул (SKU):
8591026
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/electromechanical--circuit-protection--tvs-diodes/p6ke62ca-e3-54-vishay-8591026
-
Operating Temp Range:
-55°C to +175°C
-
Capacitance:
100pF
-
Storage Temperature Range:
-55°C to +175°C
-
Power Dissipation:
600W
-
Clamping Voltage-Max:
85V
-
Peak Output Current:
7.1A
-
Breakdown Voltage-Min:
58.9V
-
Breakdown Voltage-Max:
65.1V
-
Directional:
Bi-Directional
-
Reverse Leakage Current:
1µA
-
Peak Power:
600W
-
Test Current:
1mA
-
Standoff Voltage:
53V
-
Скачать Datasheet p6ke.pdf:
http://www.vishay.com/docs/88369/p6ke.pdf
