The NL17SZ07 is a high performance single inverter with open drain outputs operating from a 1.65 to 5.5 V supply. The Output stage is open drain with Over Voltage Tolerance. This allows the NL17SZ07 to be used to interface 5.0 V circuits to circuits of any voltage between 0 and +7.0 V.
Key Features:
Tiny SOT-353 and SOT-553 Packages
Extremely High Speed: tPD 2.5 ns (typical) at VCC = 5 V
Designed for 1.65 V to 5.5 V VCC Operation, CMOS Compatible
Over Voltage Tolerant Inputs VIN may be Between 0 and 7.0 V for VCC Between 0.5 and 5.4 V
TTL Compatible - Interface Capability with 5.0 V TTL Logic with VCC = 2.7 V to 3.6 V
LVCMOS Compatible
24 mA Output Sink Capability, Pullup may be between 0 and 7.0 V
Near Zero Static Supply Current Substantially Reduces System Power Requirements
Chip Complexity: FET = 20
Pb-Free Packages are Available
Категория:
Одиночные логические элементы
Артикул:
8860058
Наличие:
287
-

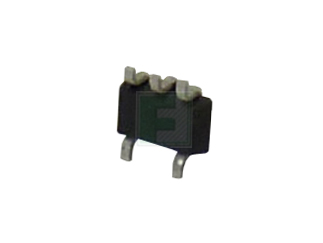

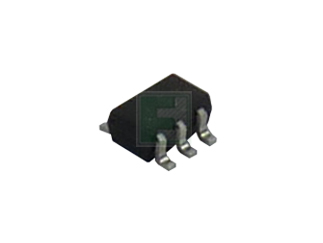

Package Style:
SOT-353 (SC-88A, SC-70-5)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
30000
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
NL17SZ07DFT2G
-
Модель:
reel
-
Артикул (SKU):
8860058
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--gates--single-gate/nl17sz07dft2g-onsemi-8860058
-
Supply Voltage-Nom:
1.65V to 5.5V
-
Logic Circuit:
Non-Inverting Buffer
-
No of Functions / Channels:
1
-
Output Characteristics:
O-DRN
-
Скачать Datasheet NL17SZ07-D.PDF:
http://www.onsemi.com/pub_link/Collateral/NL17SZ07-D.PDF
