The NC7SZ58 Series is a universal configurable two-input Logic Gates. Each device is capable of being configured for 1 of 5 unique two-input logic functions. Any possible two-input combinatorial logic function can be implemented.
Features:
Ultra High Speed
Capable of Implementing any Two-Input Logic Functions
Typical Usage Replaces Two (2) TinyLogic Gate Devices
Reduces Part Counts in Inventory
Broad Vcc Operating Range: 1.65 V to 5.5 V
Power Down High Impedance Input/Output
Over-Voltage Tolerant Inputs Facilitate 5 V to 3 V Translation
Proprietary Noise/EMI Reduction Circuitry Implemented
Applications:
Graphic Card
Home Audio System Components
Broadband Access
Medical Electronics/Devices
Mobile Handsets
Routers & LAN Switches
Категория:
Одиночные логические элементы
Артикул:
3194585
Наличие:
364
-
Operating Temperature:
-40°C to +85°C
-
Package Style:

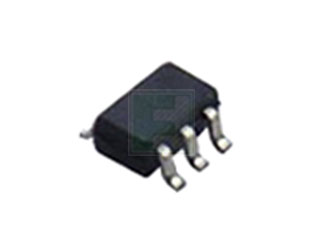

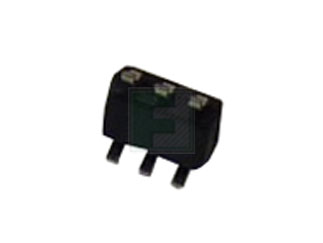

SOT-363 (SC-70-6, SC-88)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
3000
-
Производитель:
Onsemi
-
Тикер производителя:
FSC
-
Модель модификации:
NC7SZ58P6X
-
Модель:
reel
-
Артикул (SKU):
3194585
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--gates--single-gate/nc7sz58p6x-onsemi-3194585
-
Capacitance:
2pF
-
Supply Voltage-Nom:
1.65V to 5.5V
-
Moisture Sensitivity Level:
1
-
Power Dissipation:
0.19W
-
Logic Circuit:
Multiple Function
-
No of Pins:
6
-
No of Functions / Channels:
1
-
Propagation Delay:
3.4ns
-
No of Inputs:
2
-
No of Outputs:
Single
-
High Level Output Current:
-32mA
-
Low Level Output Current:
32mA
-
Quiescent Current:
1µA
-
Скачать Datasheet nc7sz58-d.pdf:
https://www.onsemi.com/pub/Collateral/NC7SZ58-D.PDF
