The NC7SZ00P5X is a part of NC7SZ00 Series is a Single two-input NAND Gate Ultra-High Speed (UHS) series of TinyLogic
Features:
Ultra-High Speed: tPD 2.4 ns (Typical) into 50 pF at 5 V Vcc
High Output Drive: ±24 mA at 3 V Vcc
Broad VCC Operating Range: 1.65 V to 5.5 V
Matches Performance of LCX Operated at 3.3 V Vcc
Power Down High-Impedance Inputs/Outputs
Over-Voltage Tolerance inputs facilitate 5 V to 3 V Translation
Proprietary Noise/EMI Reduction Circuitry
Ultra-Small MicroPak Packages
Space-Saving SOT23 and SC70 Packages
Applications:
Broadband Modem
Consumer Appliances
Desktop PC
Medical Electronics/Devices
Mobile Handsets
LCD Monitor
Broadband Access
Категория:
Одиночные логические элементы
Артикул:
2849578
Наличие:
787
-
Operating Temperature:
-40°C to +85°C
-

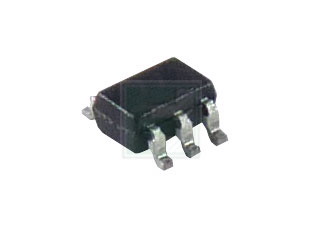

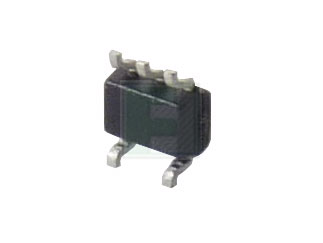

Package Style:
SOT-353 (SC-88A, SC-70-5)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
30000
-
Производитель:
Onsemi
-
Тикер производителя:
FSC
-
Модель модификации:
NC7SZ00P5X
-
Модель:
reel
-
Артикул (SKU):
2849578
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--gates--single-gate/nc7sz00p5x-onsemi-2849578
-
Capacitance:
4pF
-
Supply Voltage-Nom:
1.65V to 5.5V
-
Moisture Sensitivity Level:
1
-
Power Dissipation:
0.19W
-
Logic Circuit:
NAND Gate
-
No of Pins:
5
-
No of Functions / Channels:
1
-
Propagation Delay:
2.4ns
-
No of Inputs:
2
-
No of Outputs:
Single
-
High Level Output Current:
-32mA
-
Low Level Output Current:
32mA
-
Quiescent Current:
2µA
-
Скачать Datasheet NC7SZ00-D.PDF:
https://www.onsemi.com/pub/Collateral/NC7SZ00-D.PDF
