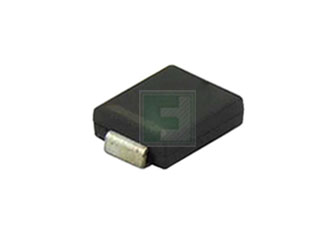

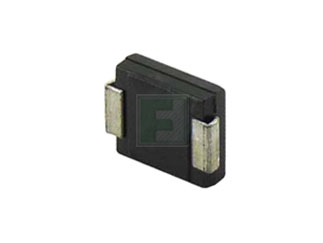

Выпрямитель диод MURM320T3G ON Semiconductor 3A 200V UltraFast SMD

The MURS320T3 employs the state−of−the−art epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes, in surface mount applications where compact size and weight are critical to the system. Key Features: Small Compact Surface Mountable Package with J−Bend Leads Rectangular Package for Automated Handling High Temperature Glass Passivated Junction Low Forward Voltage Drop (0.71 to 1.05 Volts Max @ 3.0 A, TJ = 150°C) Pb−Free Packages are Available Characteristics: Case: Epoxy, Molded Epoxy Meets UL 94 V−0 @ 0.125 in Weight: 217 mg (approximately) Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds Shipped in 16 mm Tape and Reel, 2500 units per reel Polarity: Notch in Plastic Body Indicates Cathode Lead Device Meets MSL1 Requirements ESD Ratings: Machine Model, C (> 400 V) Human Body Model, 3B (> 8000 V) Machine Model, C (> 400 V) Human Body Model, 3B (> 8000 V)
