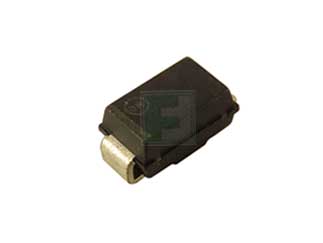

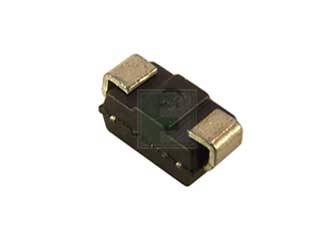

The MRA4003T3G is a standard recovery power rectifier, available in a SMA power surface mount package.
Features:
Compact Package with J−Bend Leads Ideal for Automated Handling
Stable, High Temperature, Glass Passivated Junction
NRVA Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 seconds in Solder Bath
ESD Rating: Human Body Model 3A Machine Model C
Human Body Model 3A
Machine Model C
These Devices are Pb−Free and are RoHS Compliant
Категория:
Выпрямительные диоды
Артикул:
8395170
Наличие:
много
-
Package Style:
SMA (DO-214AC, SOD-106)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
5000
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MRA4003T3G
-
Модель:
reel
-
Артикул (SKU):
8395170
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--diodes--standard-rectifiers/mra4003t3g-onsemi-8395170
-
Forward Voltage:
1.1V
-
Reverse Current-Max:
10µA
-
Reverse Voltage-Max [Vrrm]:
300V
-
Peak Current-Max:
30A
-
Average Rectified Current-Max:
1A
