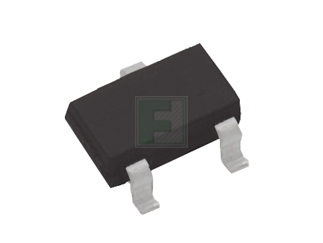

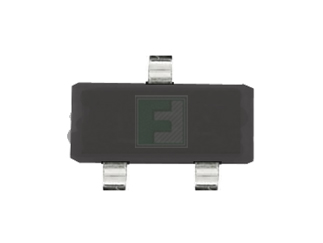

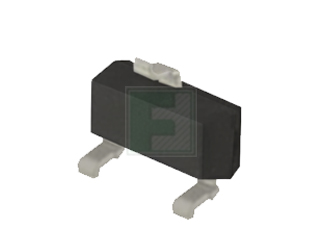

The MMBD4148CA is a High Conductance Ultra Fast Small Signal Diode with a maximum forward Operating voltage of 1.0 V and average Rectified Forward Current of 200 mA.
Specifications:
Operating Junction Temperature : 150°C
Storage Temperature Range : -55 to 150°C
Breakdown Voltage : IR= 5 µA at 75 V min
Diode Capacitance : 4pF at VR=0 V, f=1.0 MHz
Applications:
Desktop PC
Notebook PC
Workstation
Server & Mainframe
Graphic Card
LCD Monitor
Printer
Test and Measurement
Mobile Handsets
Consumer Electronics
View the MMBD Series of Small Signal Diodes
View the MMBD Series of Small Signal Diodes
Категория:
Маломощные диоды
Артикул:
5190599
Наличие:
501
-
Package Style:
SOT-23 (SC-59,TO-236)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
18000
-
Производитель:
Onsemi
-
Тикер производителя:
FSC
-
Модель модификации:
MMBD4148CA
-
Модель:
reel
-
Артикул (SKU):
5190599
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--diodes--small-signal-diodes/mmbd4148ca-onsemi-5190599
-
Operating Temp Range:
-55°C to +150°C
-
Type:
Standard
-
Forward Voltage:
1V
-
Configuration:
Dual
-
Reverse Voltage-Max [Vrrm]:
100V
-
Reverse Recovery Time-Max:
4ns
-
Power Dissipation:
350mW
-
Diode Capacitance-Max:
4pF
-
Average Forward Current-Max:
200mA
-
Peak Current-Max:
2A
-
Average Rectified Current-Max:
200mA
-
Скачать Datasheet MMBD4148SE-D.pdf:
https://www.onsemi.com/pub/Collateral/MMBD4148SE-D.pdf
