The Bipolar Power Transistor is designed for use as a high-frequency driver in audio amplifiers.
Features:
DC Current Gain Specified to 4.0 Amperes hFE = 40 (Min) @ IC = 3.0 Adc hFE = 20 (Min) @ IC = 4.0 Adc
hFE = 40 (Min) @ IC = 3.0 Adc
hFE = 20 (Min) @ IC = 4.0 Adc
Collector-Emitter Sustaining Voltage VCEO(sus) = 120 Vdc (Min) MJE15028, MJE15029 VCEO(sus) = 150 Vdc (Min) - MJE15030, MJE15031
VCEO(sus) = 120 Vdc (Min) MJE15028, MJE15029
VCEO(sus) = 150 Vdc (Min) - MJE15030, MJE15031
High Current Gain - Bandwidth Product fT = 30 MHz (Min) @ IC = 500 mAdc
fT = 30 MHz (Min) @ IC = 500 mAdc

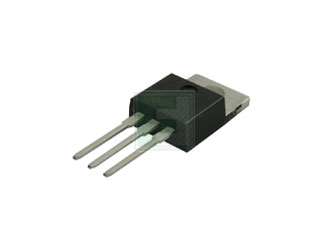

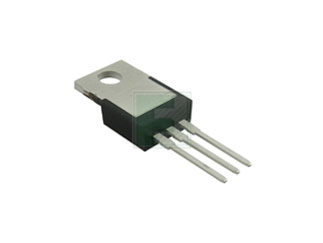

TO-220AB Compact Package
Pb-Free Packages are Available
Категория:
Биполярные транзисторы (BJT)
Артикул:
5190556
Наличие:
971
-
Package Style:
TO-220-3 (TO-220AB)
-
Mounting Method:
Flange Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
50
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MJE15030G
-
Модель:
tube
-
Артикул (SKU):
5190556
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--transistors--bipolar-transistors/mje15030g-onsemi-5190556
-
Type:
Power Transistor
-
Polarity:
NPN
-
CE Voltage-Max:
120V
-
Collector Current Max:
8A
-
Power Dissipation-Tot:
2W
-
DC Current Gain-Min:
40
-
Скачать Datasheet MJE15028-D.PDF:
http://www.onsemi.com/pub/Collateral/MJE15028-D.PDF
