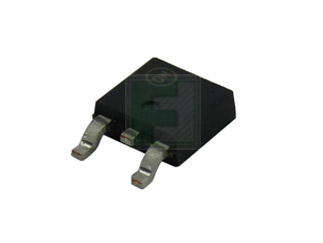

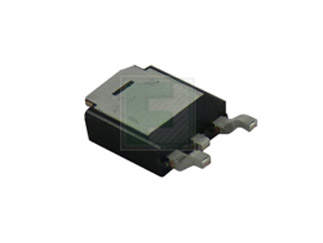

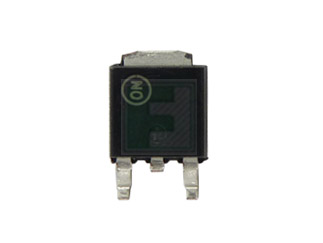

The MJD45H11RLG is a part of MJD series PNP Bipolar Power Transistor. It has a storage temperature ranging from -55°C to +150°C and its available in TO-252 package.
Features:
Lead Formed for Surface Mount Application in Plastic Sleeves
Straight Lead Version in Plastic Sleeves
Lead Formed Version in 16 mm Tape and Reel for Surface Mount
Electrically Similar to Popular D44H/D45H Series
Low Collector Emitter Saturation Voltage VCE(sat) = 1.0 Volt Max @ 8.0 Amperes
Fast Switching Speeds
Complementary Pairs Simplifies Designs
NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
Pb-Free Packages are Available
Категория:
Биполярные транзисторы (BJT)
Артикул:
3328085
Наличие:
154
-
Package Style:
TO-252-3 (DPAK)
-
Mounting Method:
Tab Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1800
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MJD45H11RLG
-
Модель:
reel
-
Артикул (SKU):
3328085
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--discretes--transistors--bipolar-transistors/mjd45h11rlg-onsemi-3328085
-
Type:
Power Transistor
-
Polarity:
PNP
-
CE Voltage-Max:
80V
-
Collector Current Max:
8A
-
Power Dissipation-Tot:
1.75W
-
DC Current Gain-Min:
60
-
Скачать Datasheet MJD44H11-D.PDF:
http://www.onsemi.com/pub/Collateral/MJD44H11-D.PDF
