Micrel’s MIC5159YM6 TR is a precision-voltage regulator controller. Used with an external P-Channel MOSFET, the MIC5159 forms a two-chip low-dropout regulator capable of driving a wide range of output currents.
Features:
Fast transient response
Input voltage range: VIN: 1.65 V to 5.5 V
±1.0% initial output tolerance
Fixed 1.8 V or adjustable output voltage down to 1.25 V
Stable with ceramic output capacitor
Capable up to 10 A
Excellent line and load regulation specifications
Logic-controlled shutdown
Programmable current limit
Current limit protection

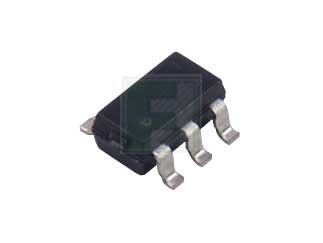

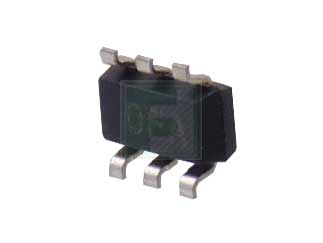

IttyBitty™ SOT-23-6 Package
Available temperature renge: –40°C to +125°C
Applications:
Ultra-high current, ultra-low dropout voltage regulator
High-efficiency linear power supplies
Low-voltage distributed power
Fixed telecom
Multimedia and PC power supplies
Battery chargers
Low-voltage DSP, µP- and microcontroller power supplies
Категория:
Линейные стабилизаторы
Артикул:
8638223
Наличие:
258
-
Package Style:
SOT-23-6 (SOT-26)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
View PCN Information
-
Статус части:
Active
-
Размер минимального заказа, шт.:
3000
-
Производитель:
Microchip
-
Тикер производителя:
MCP
-
Модель модификации:
MIC5159YM6-TR
-
Модель:
reel
-
Артикул (SKU):
8638223
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--regulators-reference--linear-regulators/mic5159ym6-tr-microchip-8638223
-
Tolerance (%):
±1%
-
Operating Temp Range:
-40°C to +125°C
-
Rated Power:
0.425W
-
Input Voltage-Min:
1.65V
-
Input Voltage-Max:
5.5V
-
Output Voltage Fixed:
1.25V
-
Output Current-Max:
10mA
-
Regulator Topology:
Adjustable
-
No. of Outputs:
Single
-
Load Regulation (%):
1%
-
Line Regulation (%):
0.1%
-
Output Voltage Range:
1.25V
-
Скачать Datasheet mic5159.pdf:
http://ww1.microchip.com/downloads/en/DeviceDoc/mic5159.pdf
