The MIC23031-CYMT TR is a high efficiency 4 MHz 400 mA synchronous buck regulator with Hyper Light Load™ mode. Hyper Light Load™ provides very high efficiency at light loads and ultra-fast transient response which is perfectly suited for supplying processor core voltages.
Features:
Input voltage range: 2.7 V to 5.5 V
400 mA output current
Up to 93% efficiency and 88% at 1 mA
21 µA typical quiescent current
4 MHz PWM operation in continuous mode
Ultra fast transient response
Low voltage output ripple
20 mVpp ripple in Hyper Light Load TM mode
3 mV output voltage ripple in full PWM mode
Fully integrated MOSFET switches
0.01 µA shutdown current
Thermal shutdown and current limit protection
Fixed and adjustable output voltage options available

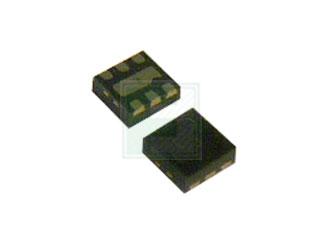

6-pin 1.6 mm x 1.6 mm Thin MLF ®
–40 °C to +125 °C junction temperature range
Applications:
Mobile Handsets
Portable Media/MP3 Players
Poryable Navigation Devices(GPS)
WiFi/WiMax/WiBro Modules
Digital Cameras
Wireless LAN cards
Категория:
Импульсные регуляторы
Артикул:
4068961
Наличие:
401
-
Package Style:
TMLF-6
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
View PCN Information
-
Статус части:
Active
-
Размер минимального заказа, шт.:
5000
-
Производитель:
Microchip
-
Тикер производителя:
MCP
-
Модель модификации:
MIC23031-CYMT-TR
-
Модель:
reel
-
Артикул (SKU):
4068961
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--regulators-reference--switching-regulators/mic23031-cymt-tr-microchip-4068961
-
Operating Temp Range:
-40°C to +125°C
-
Output Type:
Fixed
-
Storage Temperature Range:
-65°C to +150°C
-
Quiescent Current:
35µA
-
Switching Frequency-Max:
4MHz
-
Input Voltage:
2.7V to 5.5V
-
Efficiency:
93%
-
Output Current-Max:
400mA
-
No. of Outputs:
1
-
Load Regulation (%):
0.7%
-
Topology:
Buck
-
Duty Cycle-Max:
80%
-
Скачать Datasheet MIC23031.pdf:
http://ww1.microchip.com/downloads/en/DeviceDoc/MIC23031.pdf
