The MIC2238-J4YML TR is dual output, High-efficiency synchronous step-down DC/DC converter. The MIC2238 is ideally suited for portable systems which demand high power conversion efficiencies while offered in a very small package. The MIC2238 offers an ultra-low quiescent current in light load mode assuring minimum current draw from battery powered applications in standby modes.
Features:
High Efficiency: Up to 95%
Ultra-low quiescent current: Only 28 µA
Ultra-low shutdown current less than 1 µA
2.5 MHz PWM operation
High output current capability per channel: 800mA
No Schottky Diodes Required
Stable with 2.2 µH inductor, 2.2 µF ceramic capacitor
Adjustable output voltage down to 0.8 V
Built-in soft-start circuitry
Current limit protection
Automatic switching into light load mode operation
FPWM pin allows low noise all-PWM mode operation
Power good output with internal 5 µA current source allows sequencing with programmable delay time
Small Thermally Enhanced 3 mm × 3 mm MLF ® package
Applications:
Cellular phones
PDAs
Digital cameras
MP3 players
Категория:
Импульсные регуляторы
Артикул:
6976500
Наличие:
658
-

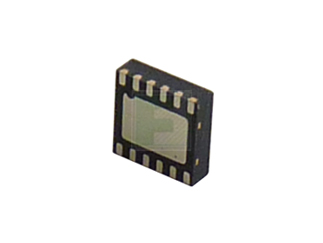

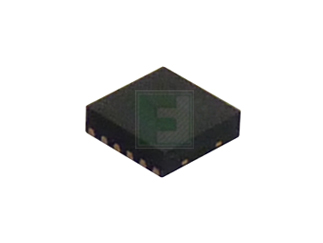

Package Style:
MLF-12
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
View PCN Information
-
Статус части:
Active
-
Размер минимального заказа, шт.:
5000
-
Производитель:
Microchip
-
Тикер производителя:
MCP
-
Модель модификации:
MIC2238-J4YML-TR
-
Модель:
reel
-
Артикул (SKU):
6976500
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--regulators-reference--switching-regulators/mic2238-j4yml-tr-microchip-6976500
-
Operating Temp Range:
-40°C to +125°C
-
Output Type:
Fixed
-
Storage Temperature Range:
-65°C to +150°C
-
Quiescent Current:
28µA
-
Switching Frequency-Max:
2.875MHz
-
Input Voltage:
2.5V to 5.5V
-
Output Current-Max:
800mA
-
No. of Outputs:
2
-
Topology:
Buck
-
Duty Cycle-Max:
100%
-
Скачать Datasheet MIC2238.pdf:
http://ww1.microchip.com/downloads/en/DeviceDoc/MIC2238.pdf
