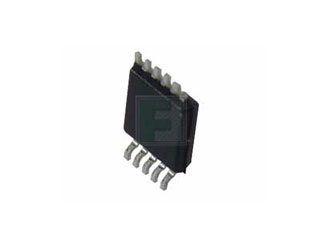

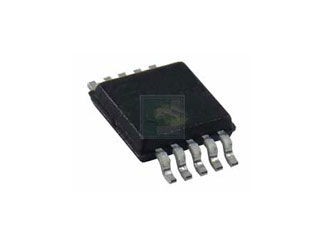

MCP73833-AMI/UN Microchip: Линейный контроллер заряда Li-Ion/Li-Polymer, MSOP-10

The MCP73833-AMI/UN is a 6V, Stand-Alone Linear Li-Ion/Li-Polymer Charge Management Controller designed for use in space limited and cost sensitive applications. Features: Complete Linear Charge Management Controller Integrated Pass Transistor Integrated Current Sense Integrated Reverse Discharge Protection Constant Current / Constant Voltage Operation with Thermal Regulation High Accuracy Preset Voltage Regulation: 4.2V, 4.35V, 4.4V, or 4.5V, + 0.75% Programmable Charge Current: 1A Maximum Preconditioning of Deeply Depleted Cells Selectable Current Ratio Selectable Voltage Threshold Automatic End-of-Charge Control Selectable Current Threshold Selectable Safety Time Period Automatic Recharge Selectable Voltage Threshold Two Charge Status Outputs Cell Temperature Monitor Low-Dropout Linear Regulator Mode Automatic Power-Down when Input Power Removed Under Voltage Lockout Available Packages: 3mm x 3mm DFN-10 MSOP-10 Applications: Lithium-Ion / Lithium-Polymer Battery Chargers Personal Data Assistants Cellular Telephones Digital Cameras MP3 Players Bluetooth Headsets USB Chargers
