The MCP6062 family of operational amplifiers (op amps) has low input offset voltage (±150 μV, maximum) and rail-to-rail input and output operation. This family is unity gain stable and has a gain bandwidth product of 730 kHz (typical).
Features:
Low Offset Voltage: ±150 μV (maximum)
Low Quiescent Current: 60 μA (typical)
Rail-to-Rail Input and Output
Wide Supply Voltage Range: 1.8 V to 6.0 V
Gain Bandwidth Product: 730 kHz (typical)
Unity Gain Stable
Extended Temperature Range: -40°C to +125°C
No Phase Reversal
Applications:
Automotive
Portable Instrumentation
Sensor Conditioning
Battery Powered Systems
Medical Instrumentation
Test Equipment
Analog Filters
Категория:
Операционные усилители общего назначения
Артикул:
9864851
Наличие:
Нет в наличии
-
Supply Voltage:
1.8V to 6V
-
Package Style:

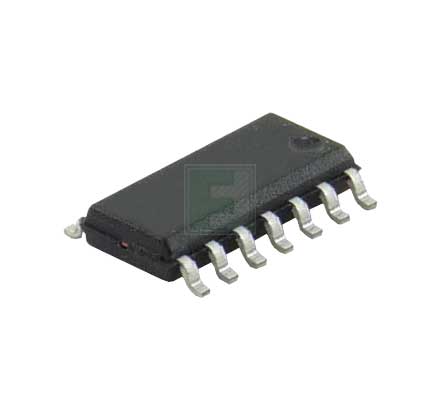

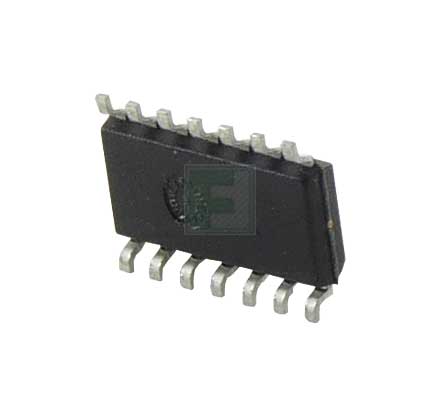

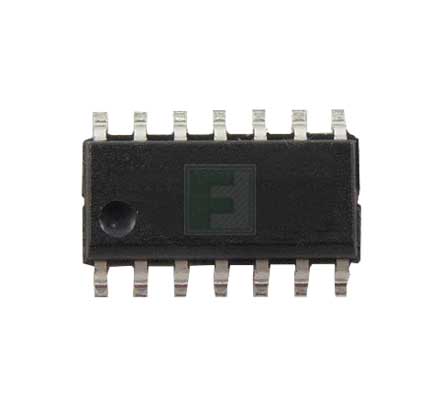

SOIC-14
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
View PCN Information
-
Статус части:
Active
-
Размер минимального заказа, шт.:
285
-
Производитель:
Microchip
-
Тикер производителя:
MCP
-
Модель модификации:
MCP6064-E/SL
-
Модель:
tube
-
Артикул (SKU):
9864851
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--amplifiers--general-purpose/mcp6064-e-sl-microchip-9864851
-
Operating Temp Range:
-40°C to +125°C
-
Output Type:
Rail to Rail
-
No of Channels:
4
-
Amplifier Type:
General Purpose
-
Slew Rate-Nom:
0.25V/µs
-
Input Offset Voltage-Max:
150µV
-
Gain Bandwidth Product:
730kHz
-
Average Bias Current-Max:
100pA
-
Common Mode Rejection Ratio:
91dB
-
Phase Margin:
61°
-
Output Current:
27mA
-
Скачать Datasheet filehandler.aspx:
http://www.microchip.com/mymicrochip/filehandler.aspx?ddocname=en542225
-
Power Supply Rejection Ratio:
87dB
-
DC Voltage Gain:
115dB
-
Low Noise:
25nV/√Hz
