The MCP4822 series of dual channel 12-bit DAC with internal voltage reference. This device offers high accuracy and low power consumption, and is available in various packages. Communication with the device is accomplished via a simple serial interface using SPI protocols.
Features:
12-bit Resolution
Dual Channel Voltage Output
2.7 V to 5.5 V Operation
Operating Current 415 µA (typ)
Internal Voltage Reference 2.048 V
Selectable Unity or 2x Gain Output
INL ±2 LSB (typ)
DNL ±0.75 LSB (max)
Output Settling Time 4.5 µs
SPI Interface
8-pin PDIP, SOIC, MSOP packages
Temperature Range -40°C to +125°C
Applications:
Set Point or Offset Trimming
Sensor Calibration
Precision Selectable Voltage Reference
Portable Instrumentation (Battery Powered)
Calibration of Optical Communication Devices
Категория:
Цифро-аналоговые преобразователи
Артикул:
2619427
Наличие:
150
-
Supply Voltage:
2.7V to 5.5V
-
On-Chip DAC:
2-chx12-bit
-

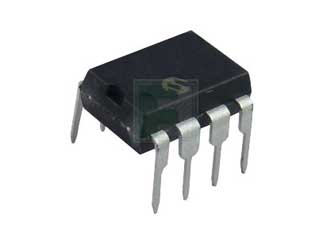

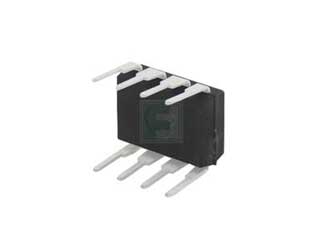

Package Style:
PDIP-8
-
Mounting Method:
Through Hole
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
Microchip
-
Тикер производителя:
MCP
-
Модель модификации:
MCP4822-E/P
-
Модель:
tube
-
Артикул (SKU):
2619427
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--data-converters--digital-to-analog-converter/mcp4822-e-p-microchip-2619427
-
Operating Temp Range:
-40°C to +125°C
-
No of Channels:
2
-
Storage Temperature Range:
-65°C to +150°C
-
Moisture Sensitivity Level:
1
-
Interface:
SPI
-
Resolution:
12b
-
Settling Time:
4.5µs
-
Скачать Datasheet 20002249B.pdf:
http://ww1.microchip.com/downloads/en/DeviceDoc/20002249B.pdf
