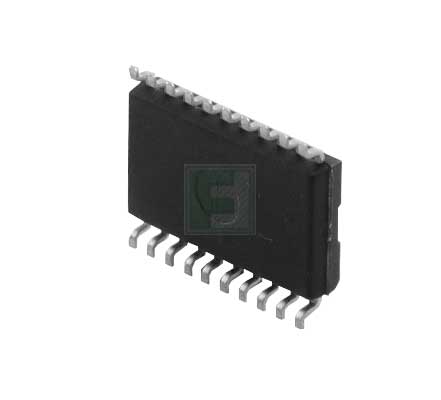

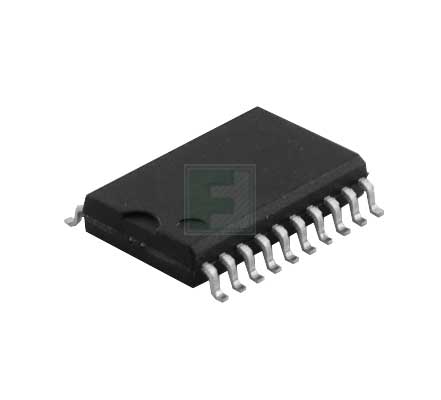

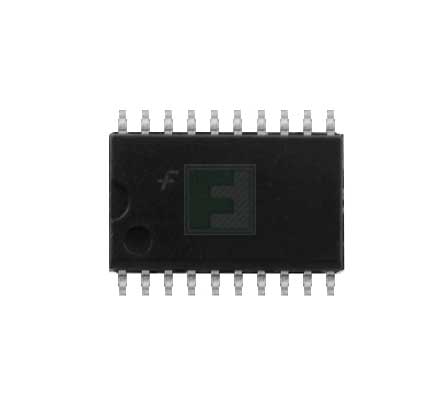

MCP2200-I/SO - USB-UART конвертер Microchip, 12Mbps, SOIC-20

The MCP2200 is a USB-to-UART serial converter which enables USB connectivity in application that have a UART interface. The device reduces external components by integrating the USB termination resistors. Features: Universal Serial Bus (USB) Supports Full-Speed USB (12 Mb/s) Implements USB Protocol Composite Device CDC Device  (communications and control) Class 02h - CDC: USB-to-UART communications and I/O control Class 03h - HID: I/O control, EEPROM access, and initial configuration 128 byte buffer to handle data throughput at any UART baud rate 64 byte transmit 64 byte receive Fully configurable VID and PID assignments, and string descriptors Bus Powered or self powered USB Driver and Software Support Royalty-free drivers for Virtual Com Port (VCP) Windows XP(SP2 and later)/Vista/7 Configuration utility for initial configuration Universal Asynchronous Receiver/Transmitter (UART) Support baud rates: 300 - 1000 k (baud) Hardware flow control UART signal polarity option General Purpose Input/Output (GPIO) Pins Eight (8) general purpose I/O pins EEPROM 256 bytes of user EEPROM Other USB activity LED outputs (TxLED and RxLED) SSPND output pin ULOAD output pin (indicates if requested current was allowed). Operating voltage: 3.0 - 5.5 (V) Oscillator input: 12 MHz ESD protection > 4 kV HBM Industrial (I) Operating Temperature: -40°C to +85°C
