The MCP19111-E/MQ is a highly integrated, mixed signal analog Pulse-Width Modulation (PWM) Current Mode Controller with an integrated microcontroller core for synchronous DC/DC step-down applications.
Features:
Input Voltage: 4.5V to 32V
Output Voltage: 0.5V to 3.6V
Switching Frequency: 100 kHz to 1.6 MHz
Peak Current Mode Control
Differential Remote Output Sense
Quiescent Current: 5 mA Typical
Thermal Shutdown
Significant Configurability: Adjustable Analog Compensation, Switching Frequency, MOSFET Deadtime I2C Communication Interface
Integrated 8-Bit PIC® Microcontroller
Integrated Synchronous High- and Low-Side MOSFET Drivers
Integrated Current Sense
Minimal External Components Needed
Custom Algorithm Support
Multi-Phase Systems:
Master or Slave
Frequency Synchronized
Common Error Signal
Multiple Output Systems:
Master or Slave
Frequency Synchronized
Категория:
ШИМ-контроллеры
Артикул:
2031960
Наличие:
много
-
Supply Voltage:
4.5V to 32V
-

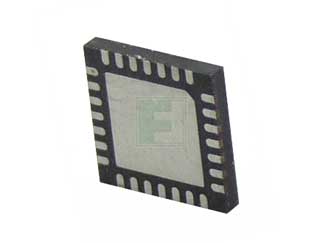

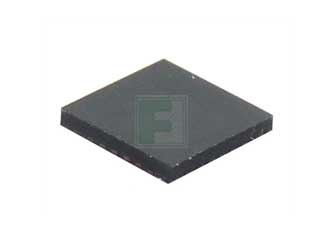

Package Style:
QFN-28
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
146
-
Производитель:
Microchip
-
Тикер производителя:
MCP
-
Модель модификации:
MCP19111-E/MQ
-
Модель:
tube
-
Артикул (SKU):
2031960
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--power-controllers--pwm-controllers/mcp19111-e-mq-microchip-2031960
-
Operating Temp Range:
-40°C to +125°C
-
Storage Temperature Range:
-65°C to +150°C
-
Input Voltage:
32V
-
Output Current:
25mA
-
Скачать Datasheet filehandler.aspx:
http://www.microchip.com/mymicrochip/filehandler.aspx?ddocname=en560754
-
Thermal Resistance:
35.3°C/W
-
Topology:
Buck
-
Duty Cycle-Max:
100%
-
Frequency-Max:
1.6MHz
-
Supply Current-Max:
2A
