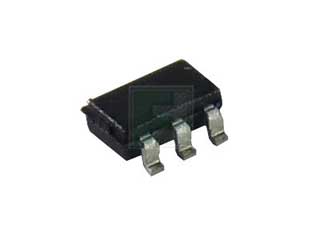

The MCP1804T-5002I/OT is a part of MCP1804 Series Linear Regulators. It is available in SOT-23-5 package.
Features:
150 mA Output Current
Low Drop Out Voltage, 260 mV typical @ 20 mA,VR = 3.3 V
50 μA Typical Quiescent Current
0.01 μA Typical Shutdown Current
Input Operating Voltage Range: 2.0 V to 28.0 V
Standard Output Voltage Options (1.8 V, 2.5 V, 3.0 V, 3.3 V, 5.0 V, 10.0 V, 12.0 V)
Output Voltage Accuracy: ±2%
Output voltages from 1.8 V to 18.0 V in 0.1 V increments are available upon request
Stable with Ceramic output capacitors
Current Limit Protection With Current Foldback
Shutdown pin
High PSRR: 50 dB typical @ 1 kHz
Applications:
Cordless Phones, Wireless Communications
PDAs, Notebook and Netbook Computers
Digital Cameras
Microcontroller Power
Car Audio and Navigation Systems
Home Appliances
Категория:
Линейные стабилизаторы
Артикул:
5543889
Наличие:
357
-
Package Style:
SOT-23-5 (SOT-25)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
3000
-
Производитель:
Microchip
-
Тикер производителя:
MCP
-
Модель модификации:
MCP1804T-5002I/OT
-
Модель:
reel
-
Артикул (SKU):
5543889
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--regulators-reference--linear-regulators/mcp1804t-5002i-ot-microchip-5543889
-
Tolerance (%):
±2%
-
Operating Temp Range:
-40°C to +85°C
-
Rated Power:
0.39W
-
Quiescent Current:
50µA
-
Input Voltage-Min:
2V
-
Input Voltage-Max:
28V
-
Output Voltage Fixed:
5V
-
Dropout Voltage-Max:
1300mV
-
Output Current-Max:
150mA
-
Regulator Topology:
Fixed
-
No. of Outputs:
Single
-
Current - Limit:
200mA
-
Line Regulation (%):
0.3%
-
Load Regulation:
275mV
-
Скачать Datasheet 20002200D.pdf:
http://ww1.microchip.com/downloads/en/DeviceDoc/20002200D.pdf
