The MC79L00 negative linear voltage regulator is an inexpensive, easy-to-use device suitable for numerous applications requiring up to100 mA. Like the higher powered MC7900 Series negative regulators, this linear voltage regulator features thermal shutdown and current limiting, making it remarkably rugged. In most applications, no external components are required for operation.
Features:
No External Components Required
Internal Short Circuit Current Limiting
Internal Thermal Overload Protection
Low Cost
Complementary Positive Regulators Offered (MC78L00 Series)
Pb-Free Packages are Available
Категория:
Линейные стабилизаторы
Артикул:
8320079
Наличие:
мало
-

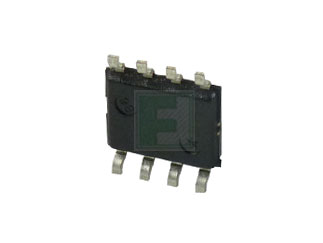

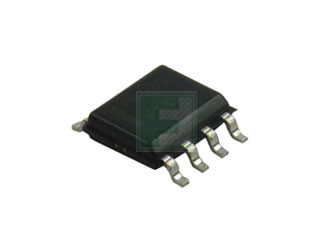

Package Style:
SOIC-8
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
7500
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MC79L05ABDR2G
-
Модель:
reel
-
Артикул (SKU):
8320079
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--regulators-reference--linear-regulators/mc79l05abdr2g-onsemi-8320079
-
Tolerance (%):
±4%
-
Operating Temp Range:
-40°C to +125°C
-
Quiescent Current:
6mA
-
Input Voltage-Max:
-30V
-
Output Voltage Fixed:
-5V
-
Dropout Voltage-Max:
1.7V
-
Output Current-Max:
100mA
-
Regulator Topology:
Fixed
-
No. of Outputs:
Single
-
Output Noise:
40µV
-
Load Regulation:
60mV
-
Line Regulation:
150mV
-
Скачать Datasheet MC79L00-D.PDF:
http://www.onsemi.com/pub/Collateral/MC79L00-D.PDF
