The MC74VHC540 is an advanced high speed CMOS inverting octal bus buffer fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.
Features:
High Speed: tPD = 3.7 ns (Typ) at VCC = 5.0 V
Low Power Dissipation: ICC = 4.0 µA (Max) at TA = 25°C
High Noise Immunity: VNIH = VNIL = 28% VCC
Power Down Protection Provided on Inputs
Balanced Propagation Delays
Designed for 2.0 V to 5.5 V Operating Range
Low Noise: VOLP = 1.2 V (Max)
Pin and Function Compatible with Other Standard Logic Families
Latchup Performance Exceeds 300 mA
ESD Performance: HBM > 2000 V; Machine Model > 200 V
Chip Complexity: 124 FETs or 31 Equivalent Gates
Категория:
A/VHC/T (74HC)
Артикул:
5946041
Наличие:
880
-
Package Style:

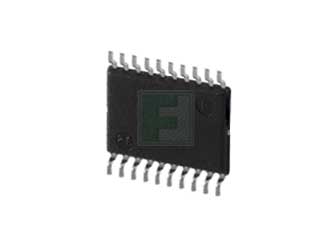

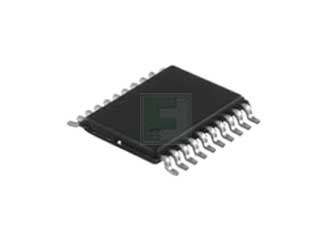

TSSOP-20
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
5000
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MC74VHC540DTR2G
-
Модель:
reel
-
Артикул (SKU):
5946041
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--74-series--a-vhc-t/mc74vhc540dtr2g-onsemi-5946041
-
Supply Voltage-Nom:
2V to 5.5V
-
Logic Circuit:
Buffer
-
Family:
A/VHC/T/U
-
Скачать Datasheet MC74VHC540-D.PDF:
http://www.onsemi.com/pub/Collateral/MC74VHC540-D.PDF
