The MC74HC1G08 is a high speed CMOS 2−input AND gate fabricated with silicon gate CMOS technology. The internal circuit is composed of multiple stages, including a buffer output which provides high noise immunity and stable output. The MC74HC1G08 output drive current is 1/2 compared to MC74HC series.
Key Features:
High Speed: tPD = 7 ns (Typ) at VCC = 5 V
Low Power Dissipation: ICC = 1 µA (Max) at TA = 25°C
High Noise Immunity
Balanced Propagation Delays (tpLH = tpHL)
Symmetrical Output Impedance (IOH = IOL = 2 mA)
Chip Complexity: FET = 44
Pb−Free Packages are Available
Категория:
Одиночные логические элементы
Артикул:
1044718
Наличие:
710
-
Package Style:

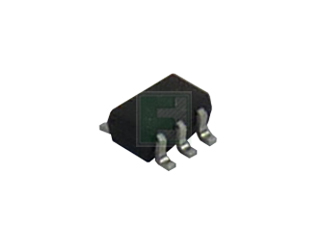

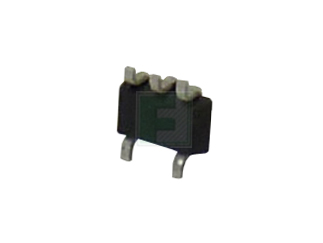

SOT-353 (SC-88A, SC-70-5)
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
30000
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MC74HC1G08DFT1G
-
Модель:
reel
-
Артикул (SKU):
1044718
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--gates--single-gate/mc74hc1g08dft1g-onsemi-1044718
-
Supply Voltage-Nom:
4V
-
Logic Circuit:
AND Gate
-
No of Functions / Channels:
1
-
Скачать Datasheet MC74HC1G08-D.PDF:
http://www.onsemi.com/pub/Collateral/MC74HC1G08-D.PDF
