The MC34074DR2G is Single Supply 3 V to 44 V Dual Operational Amplifier.
Key Features:
Wide Bandwidth: 4.5 MHz.
High Slew Rate: 13 V/µs.
Fast Settling Time: 1.1 µs to 0.1%.
Wide Single Supply Operation: 3.0 V to 44 V.
Wide Input Common Mode Voltage Range: Includes Ground (VEE).
Low Input Offset Voltage: 3.0 mV Maximum (A Suffix).
Large Output Voltage Swing: -14.7 V to +14 V (with +/-15 V Supplies).
Large Capacitance Drive Capability: 0 pF to 10,000 pF.
Low Total Harmonic Distortion: 0.02%.
Excellent Phase Margin: 60°.
Excellent Gain Margin: 12 dB.
Output Short Circuit Protection.
Pb-Free Packages are Available.
Категория:
Операционные усилители общего назначения
Артикул:
5550082
Наличие:
482
-
Supply Voltage:
3V to 44V
-
Package Style:

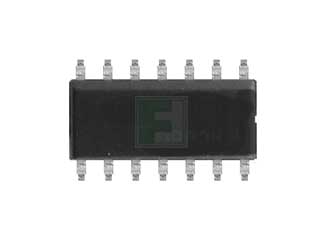

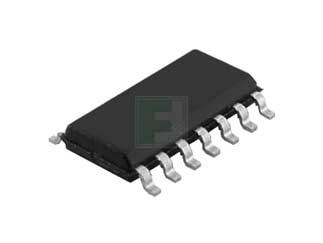

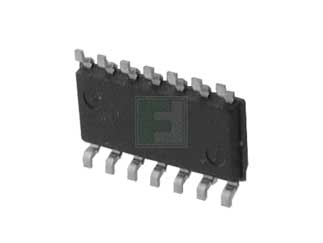

SOIC-14
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
2500
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MC34074DR2G
-
Модель:
reel
-
Артикул (SKU):
5550082
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--analog--amplifiers--general-purpose/mc34074dr2g-onsemi-5550082
-
Operating Temp Range:
0°C to 70°C
-
No of Channels:
4
-
Moisture Sensitivity Level:
1
-
Supply Current:
1.9mA
-
Amplifier Type:
General Purpose
-
Slew Rate-Nom:
13V/µs
-
Input Offset Voltage-Max:
5mV
-
Gain Bandwidth Product:
4.5MHz
-
Average Bias Current-Max:
500nA
-
Common Mode Rejection Ratio:
97dB
-
Phase Margin:
60°
-
Output Current:
30mA
-
Power Supply Rejection Ratio:
97dB
-
Low Noise:
32nV/√Hz
-
Скачать Datasheet MC34071-D.PDF:
http://www.onsemi.com/pub/Collateral/MC34071-D.PDF
