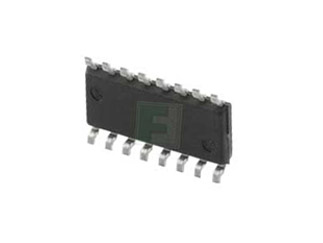

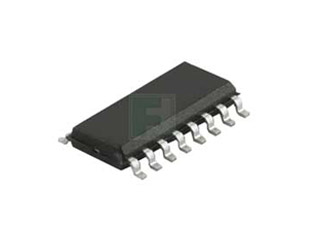

Декодер BCD-to-7сегмент MC14511BDG onsemi SOIC-16

The MC14511BDG is a BCD−to−seven segment latch/decoder/driver which is constructed with complementary MOS (CMOS) enhancement mode devices and NPN bipolar output drivers in a single monolithic structure. Features: Low Logic Circuit Power Dissipation High−Current Sourcing Outputs (Up to 25 mA) Latch Storage of Code Blanking Input Lamp Test Provision Readout Blanking on all Illegal Input Combinations Lamp Intensity Modulation Capability Time Share (Multiplexing) Facility Supply Voltage Range = 3.0 V to 18 V Capable of Driving Two Low−power TTL Loads, One Low−power Schottky TTL Load, or Two HTL Loads Over the Rated Temperature Range Chip Complexity: 216 FETs or 54 Equivalent Gates Triple Diode Protection on all Inputs These Devices are Pb−Free and are RoHS Compliant Applications: Seven−segment light−emitting diodes (LED) Incandescent Fluorescent Gas discharge or liquid crystal readouts either directly or indirectly Display Driver Various clock Watch
