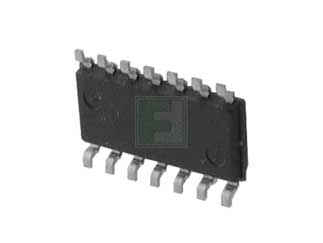

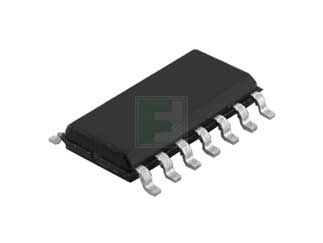

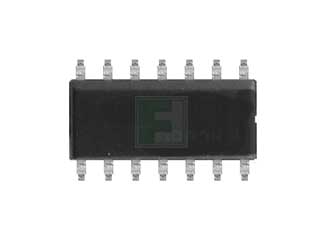

The MC14024BDR2G is a 7-stage ripple counter with short propagation delays and high maximum clock rates. Available in a SOIC-14 package.
Features:
Diode Protection on All Inputs
Output Transitions Occur on the Falling Edge of the Clock Pulse
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range
Pin-for-Pin Replacement for CD4024B
These Devices are Pb-Free and are RoHS Compliant
View the List of available MC14024 Series of Ripple Counters
View the List of available MC14024 Series of Ripple Counters
Категория:
Серия 4000
Артикул:
2066995
Наличие:
853
-
Operating Temperature:
-55°C to +125°C
-
Package Style:
SOIC-14
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
2500
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MC14024BDR2G
-
Модель:
reel
-
Артикул (SKU):
2066995
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--4000-series/mc14024bdr2g-onsemi-2066995
-
Capacitance:
7.5pF
-
Supply Voltage-Nom:
3V to 18V
-
Moisture Sensitivity Level:
1
-
Power Dissipation:
500mW
-
Logic Circuit:
Counter
-
Family:
MC1400
-
No of Pins:
14
-
No of Functions / Channels:
1
-
Propagation Delay:
2000ns
-
No of Inputs:
1
-
No of Outputs:
Seven
-
High Level Output Current:
-8.8mA
-
Low Level Output Current:
8.8mA
-
Quiescent Current:
20µA
-
Скачать Datasheet MC14024B-D.PDF:
http://www.onsemi.com/pub_link/Collateral/MC14024B-D.PDF
