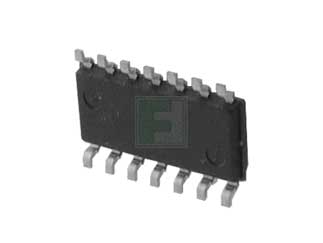

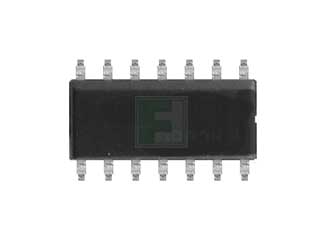

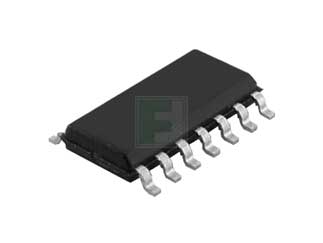

The MC14013BDG is a dual type D flip−flop with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. Available in a SOIC-14 package.
Features:
Static Operation
Diode Protection on All Inputs
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Logic Edge−Clocked Flip−Flop Design
Logic state is retained indefinitely with clock level either high or low; information is transferred to the output only on the positive−going edge of the clock pulse
Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range
Pin−for−Pin Replacement for CD4013B
These Devices are Pb−Free, Halogen Free and are RoHS Compliant
NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;
EC−Q100 Qualified and PPAP Capable
Категория:
Серия 4000
Артикул:
2167293
Наличие:
152
-
Operating Temperature:
-55°C to +125°C
-
Package Style:
SOIC-14
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
4235
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MC14013BDG
-
Модель:
tube
-
Артикул (SKU):
2167293
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--4000-series/mc14013bdg-onsemi-2167293
-
Capacitance:
7.5pF
-
Supply Voltage-Nom:
3V to 18V
-
Moisture Sensitivity Level:
1
-
Power Dissipation:
500mW
-
Logic Circuit:
D-Type, Flip Flop IC
-
Family:
MC1400
-
No of Pins:
14
-
No of Functions / Channels:
2
-
Propagation Delay:
450ns
-
No of Inputs:
1
-
No of Outputs:
Single
-
High Level Output Current:
-8.8mA
-
Low Level Output Current:
8.8mA
-
Quiescent Current:
4µA
-
Output Characteristics:
Differential
-
Скачать Datasheet MC14013B-D.PDF:
http://www.onsemi.com/pub/Collateral/MC14013B-D.PDF
