The MC14001BDG is a Quad 2-Input NOR Gate constructed with P and N Channel enhancement mode devices in a single monolithic structure (Complementary MOS).
Features:
Supply Voltage Range = 3.0 Vdc to 18 Vdc
All Outputs Buffered
Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range
Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B
Pin−for−Pin Replacements for Corresponding CD4000 Series B Suffix Devices
These Devices are Pb−Free and are RoHS Compliant
NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
Категория:
Четверные логические элементы
Артикул:
7255557
Наличие:
281
-
Package Style:

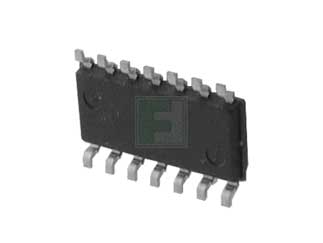

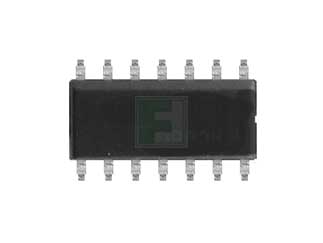

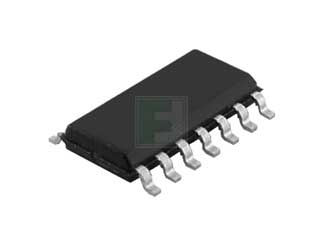

SOIC-14
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
1
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MC14001BDG
-
Модель:
tube
-
Артикул (SKU):
7255557
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--gates--quad-gate/mc14001bdg-onsemi-7255557
-
Supply Voltage-Nom:
3V to 18V
-
No of Functions / Channels:
4
-
Output Characteristics:
1-ST
-
Скачать Datasheet MC14001B-D.PDF:
http://www.onsemi.com/pub/Collateral/MC14001B-D.PDF
