The MC10EP16DG is a ECL differential receiver/driver, ideally suited for interfacing with high frequency sources. Its core supply voltage ranges from 3.0 to 5.5 V.
Features:
220 ps Typical Propagation Delay
Maximum Frequency > 4 GHz Typical
PECL Mode Operating Range: VCC = 3.0 V to 5.5 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = −3.0 V to −5.5 V
Open Input Default State
Safety Clamp on Inputs
Q Output Will Default LOW with Inputs Open or at VEE
VBB Output
Pb−Free Packages are Available
Applications:
Industrial
Automotive
Категория:
Широкополосные
Артикул:
7455793
Наличие:
820
-

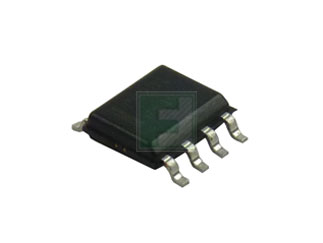

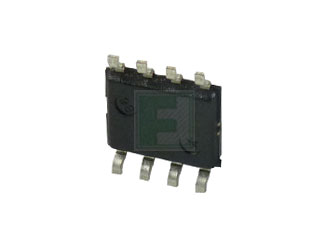

Package Style:
SOIC-8
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
196
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MC10EP16DG
-
Модель:
tube
-
Артикул (SKU):
7455793
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--timing-solutions--high-bandwidth/mc10ep16dg-onsemi-7455793
-
Supply Voltage-Nom:
3V to 5.5V
-
Input Voltage-Max:
2480mV
-
Frequency-Max:
4GHz
-
Temperature Range:
-40°C to +85°C
-
Скачать Datasheet MC10EP16-D.PDF:
http://www.onsemi.com/pub/Collateral/MC10EP16-D.PDF
