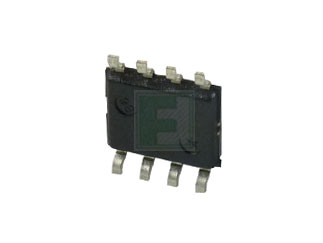

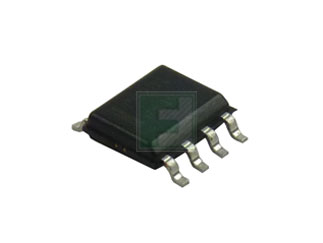

MC100LVEL05DG Onsemi Логический элемент И-НЕ, 2 входа, 3.3В, SOIC-8

The MC100LVEL05 is a 2-input differential AND/NAND gate. The device is functionally equivalent to the MC100EL05 device and operates from a 3.3 V supply voltage. With propagation delays and output transition times equivalent to the EL05, the LVEL05 is ideally suited for those applications which require the ultimate in AC performance at low voltage power supplies. Key Features: 340 ps Propagation Delay High Bandwidth Output Transitions ESD Protection: >4 kV Human Body Model, >200 V Machine Model The 100 Series Contains Temperature Compensation PECL Mode Operating Range: VCC = 3.0 V to 3.8 V with VEE = 0 V NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V to -3.8 V Internal Input Pulldown Resistors Q Output will Default LOW with All Inputs Open or at VEE Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test Flammability Rating: UL 94 V-0 @ 0.125 in, Oxygen Index: 28 to 34 Transistor Count = 69 devices Pb-Free Packages are Available
