The MC100EL91 Series are triple PECL input to ECL output translator. The device receives standard voltage differential PECL signals, determined by the VCC supply level, and translates them to differential -5 V ECL output signals. (For translation of LVPECL to -3.3 V ECL output.)
Key Features:
670 ps Typical Propagation Delay
ESD Protection: >2 kV Human Body Model
The 100 Series Contains Temperature Compensation
Operating Range:
VCC = 4.75 V to 5.5 V;
VEE = -4.2 V to -5.5 V;
GND = 0 V
Internal Input Pulldown Resistors
Q Output will Default LOW with Inputs Open or at GND
Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
Moisture Sensitivity
Pb = Level 1
Pb-Free = Level 3
Flammability Rating:
UL 94 V-0 @ 0.125 in
Oxygen Index: 28 to 34
Transistor Count = 282 devices
Pb-Free Package is Available
Learn more about the MC100ELxx Family of Translators
Learn more about the MC100ELxx Family of Translators
Категория:
Преобразователи логических уровней
Артикул:
2347524
Наличие:
много
-
Supply Voltage:
4.75V to 5.5V
-

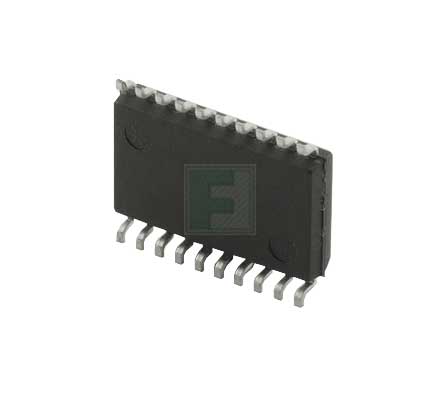

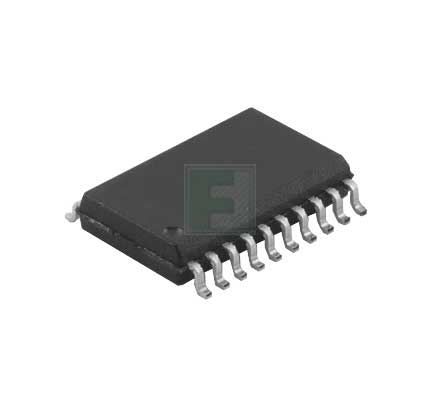

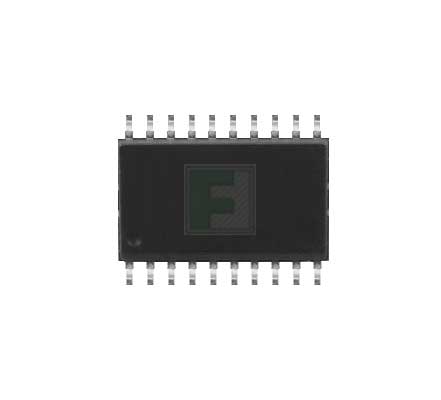

Package Style:
SOIC-20W
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
114
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MC100EL91DWG
-
Модель:
tube
-
Артикул (SKU):
2347524
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--translators/mc100el91dwg-onsemi-2347524
-
Output Type:
ECL
-
No of Channels:
3
-
Input Type:
PECL
-
Operating Frequency-Max:
700MHz
-
Скачать Datasheet MC100EL91-D.PDF:
http://www.onsemi.com/pub/Collateral/MC100EL91-D.PDF
