The MC100EL31 is a D flip-flop with set and reset. The device is functionally equivalent to the E131 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E131, the EL31 is ideally suited for those applications which require the ultimate in AC performance.
Key Features:
475 ps Propagation Delay
2.8 GHz Toggle Frequency
ESD Protection: > 1 kV Human Body Model > 100 V Machine Model
> 1 kV Human Body Model
> 100 V Machine Model
PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = −4.2 V to −5.7 V
Internal Input Pulldown Resistors on D, CLK, S, and R
Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
Moisture Sensitivity Level 1
Flammability Rating: UL 94 V−0 @ 0.125 in, Oxygen Index: 28 to 34
Metastability 125 ps
Transistor Count = 79 devices
Pb−Free Packages are Available
Категория:
Широкополосные
Артикул:
7126543
Наличие:
690
-

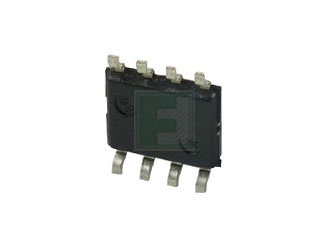

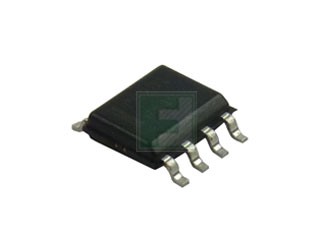

Package Style:
SOIC-8
-
Mounting Method:
Surface Mount
-
ECCN:
EAR99
-
Информация PCN:
N/A
-
Статус части:
Active
-
Размер минимального заказа, шт.:
196
-
Производитель:
Onsemi
-
Тикер производителя:
ON
-
Модель модификации:
MC100EL31DG
-
Модель:
tube
-
Артикул (SKU):
7126543
-
Ссылка на предложение поставщика:
https://www.futureelectronics.com/p/semiconductors--logic--timing-solutions--high-bandwidth/mc100el31dg-onsemi-7126543
-
Supply Voltage-Nom:
4.2V to 5.7V
-
Input Voltage-Max:
4120mV
-
Frequency-Max:
2.8GHz
-
Temperature Range:
-40°C to +85°C
